Transair® Aluminum Pipe and Fittings
Diameter: 2"(50mm)

TransairPipeSales.com is your complete source for Transair 2" Pipe and Fittings. Transair® 2" Pipe and fittings are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
50mm Transair

2" Aluminum Pipe

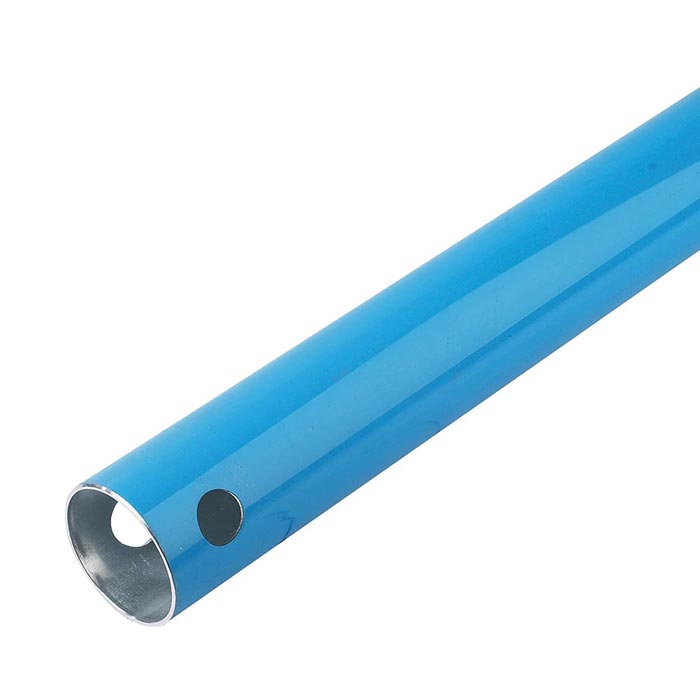

Blue Aluminum Pipe - 9ft

Product #: 1013A50 04
øD (in): 2
øD (mm): 50
L (ft): 9'
Weight: (lb): 4.80
Quick Ship: Yes




*Pipe must be ordered in
box quanities.

Blue Aluminum Pipe - 20ft

Product #: 1016A50 04
øD (in): 2
øD (mm): 50
L (ft): 20'
Weight: (lb): 9.68
Quick Ship: Yes




*Pipe must be ordered in
box quanities.

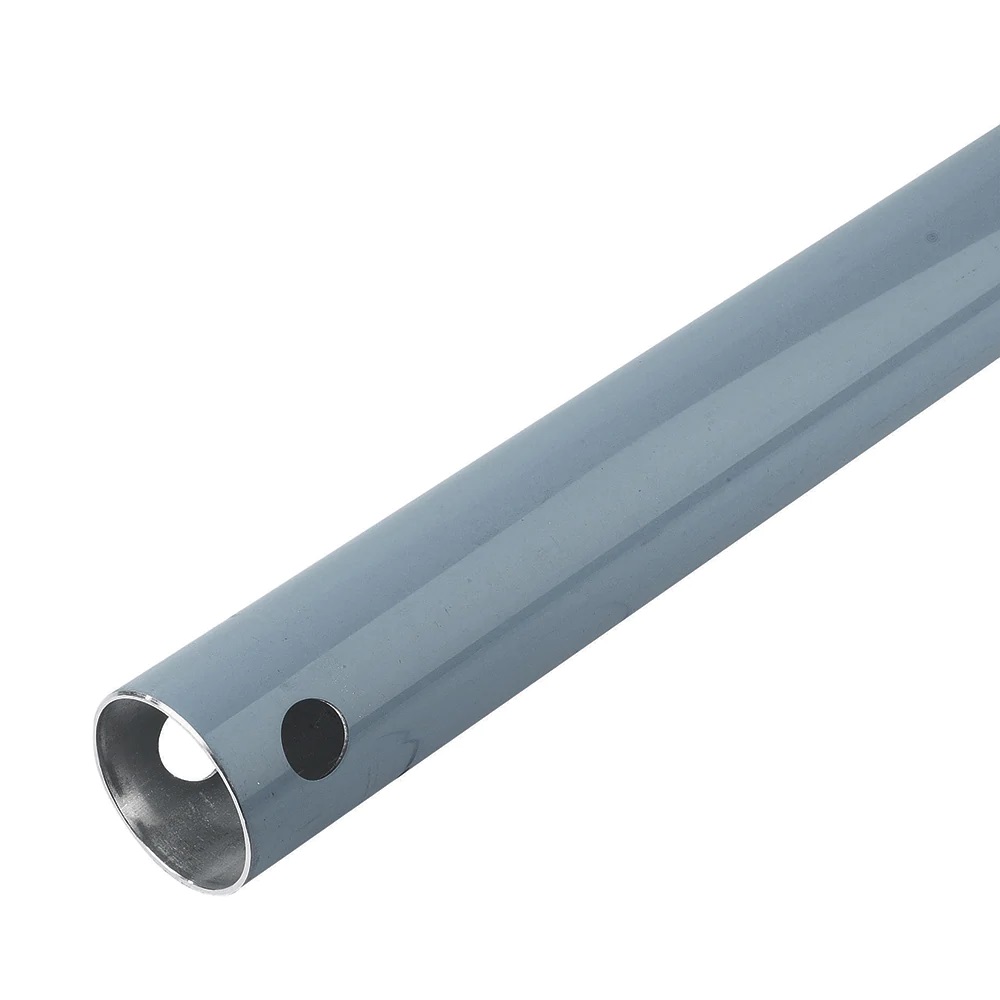

Gray Aluminum Pipe - 9ft

Product #: 1013A50 06
øD (in): 2
øD (mm): 50
L (ft): 9'
Weight: (lb): 4.72
Quick Ship: --




*Pipe must be ordered in
box quanities.

Gray Aluminum Pipe - 20ft

Product #: 1016A50 06
øD (in): 2
øD (mm): 50
L (ft): 20'
Weight: (lb): 9.68
Quick Ship: --




*Pipe must be ordered in
box quanities.

Green Aluminum Pipe - 20ft

Product #: 1016A50 02
øD (in): 2
øD (mm): 50
L (ft): 20'
Weight: (lb): 9.68
Quick Ship: --




*Pipe must be ordered in
box quanities.

Back to Top

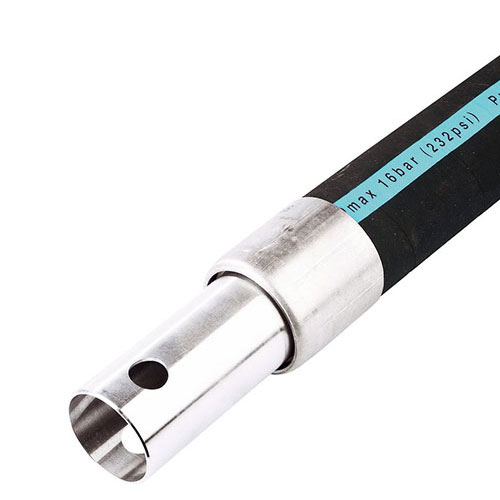

Flexible Hose

Product #: 1001E50 00 09
OD (in): 2-5/8
OD (mm): 66
ID (in): 2
ID (mm): 50
L (in): 4' 3"
MIN. BEND RADIUS (in): 11
For Use w/ Pipe Diameter(in): 2"
Quick Ship: --




Product #: 1001E50 00 04
OD (in): 2-5/8
OD (mm): 66
ID (in): 2
ID (mm): 50
L (in): 6' 6"
MIN. BEND RADIUS (in): 11
For Use w/ Pipe Diameter(in): 2
Quick Ship: --





Back to Top

2" Connectors


90° Pipe to Pipe Elbows

Product #: 6602 50 00
øD (in): 2
øD (mm): 50
L (in): 6.14
Z (in): 2.20
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

45° Pipe to Pipe Elbows

Product #: 6612 50 00
øD (in): 2
øD (mm): 50
L (in): 7.44
Z (in): 1.5
Quick Ship: --
3D   View/Download
CAD File





Back to Top

Male NPT Threaded 90° Elbows

Product #: 6609 50 50
øD (in): 2
øD (mm): 50
THD SIZE (in): 1 1/2
HEX (mm): 50
L (in): 6.14
Z1 (in): 2.20
Z2 (in): 5.39
Z2 (mm): 3.82
Quick Ship: --
3D   View/Download
CAD File




Product #: 6609 50 44
øD (in): 2
øD (mm): 50
THD SIZE (in): 2
HEX (mm): 60
L (in): 6.14
Z1 (in): 2.20
Z2 (in): 5.47
Z2 (mm): 3.90
Quick Ship: --
3D   View/Download
CAD File




Back to Top

Male NPT Threaded 45° Elbows

Product #: 6619 50 50
øD (in): 2
øD (mm): 50
THD SIZE (in): 1 1/2
HEX (mm): 50
L (in): 3.86
Z1 (in): 1.50
Z2 (in): 3.15
Quick Ship: --
3D   View/Download
CAD File




Product #: 6619 50 44
øD (in): 2
øD (mm): 50
THD SIZE (in): 2
HEX (mm): 60
L (in): 3.86
Z1 (in): 1.5
Z2 (in): 3.23
Quick Ship: --
3D   View/Download
CAD File




Back to Top

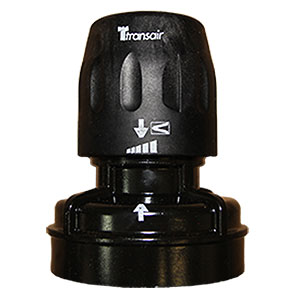

Plug-In Reducer

Product #: 6666 40 50
øD (in): 2
øD (mm): 50
øD2 (in): 1-1/2
øD2 (mm): 40
L (in): 4.57
Z (in): 2.60
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

Male NPT Threaded Connectors

Product #: 6605 50 50
øD (in): 2
øD (mm): 50
THD SIZE (in): 1 1/2
HEX (mm): 50
L (in): 4.65
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6605 50 44
øD (in): 2
øD (mm): 50
THD SIZE (in): 2
HEX (mm): 60
L (in): 4.76
Quick Ship: Yes
3D   View/Download
CAD File




Back to Top

Male NPT Threaded Connectors with Fixing Plate

Product #: 6615 50 50
øD (in): 2
øD (mm): 50
Thread NPT (in): 1-1/2
Hex (mm): 50
L (in): 4.96
Z (in): 3.54
Quick Ship: --
3D   View/Download
CAD File




Product #: 6615 50 44
øD (in): 2
øD (mm): 50
Thread NPT (in): 2
Hex (mm): 60
L (in): 4.96
Z (in): 3.54
Quick Ship: --
3D   View/Download
CAD File





Back to Top

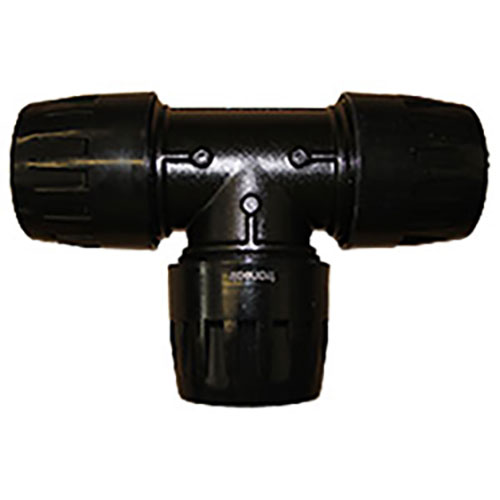

Equal Tees

Product #: 6604 50 00
øD (in): 2
øD (mm): 50
L (in): 9.09
Z1 (in): 2.20
Z2 (in): 2.20
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

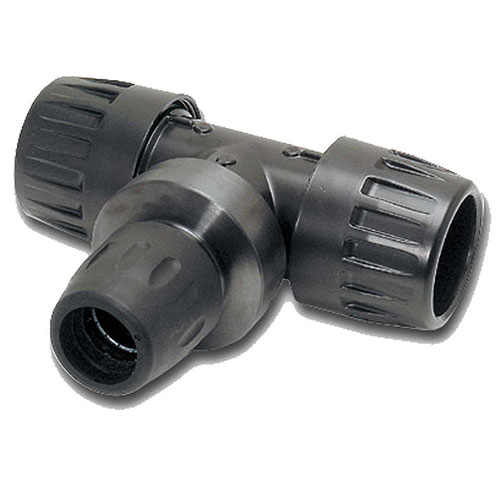

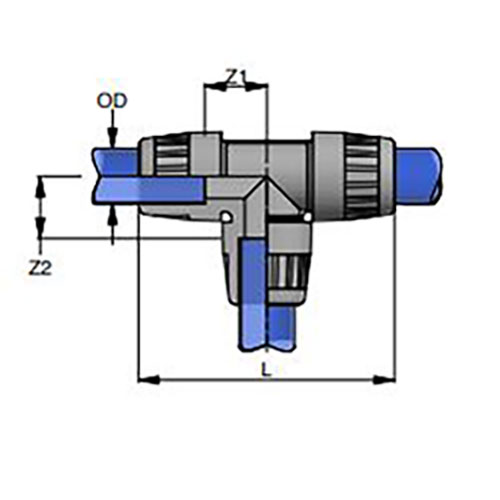

Reducing Tees

Product #: 6604 50 25
øD (in): 2
øD (mm): 50
øD2 (in): 1
øD2 (mm): 25
L (in): 9.09
Z1 (in): 2.20
Z2 (in): 4.37
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6604 50 40
øD (in): 2
øD (mm): 50
øD2 (in): 1 1/2
øD2 (mm): 40
L (in): 9.09
Z1 (in): 2.20
Z2 (in): 4.21
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

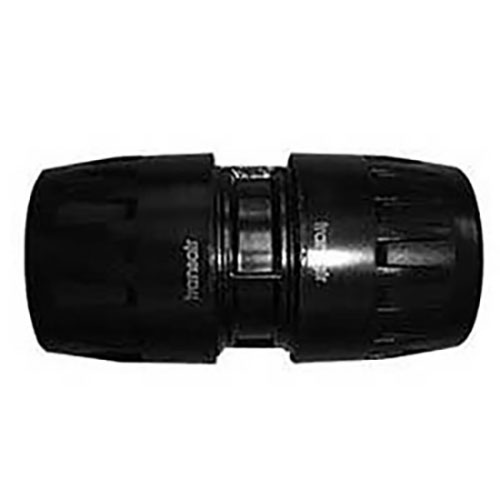

Pipe-to-Pipe Connectors (Unions)

Product #: 6606 50 00
øD (in): 2
øD (mm): 50
L (in): 6.73
Z (in): .98
Quick Ship: Yes
3D   View/Download
CAD File





Pipe-to-Pipe Connectors (Unions) with Vent

Product #: 6676 50 00
øD (in): 2
øD (mm): 50
L (in): 6.73
Z (in): .98
Quick Ship: --
3D   View/Download
CAD File





Back to Top

Male NPT Threaded Stud Nuts

Product #: 6611 50 50
øD (in): 2
øD (mm): 50
THREAD (NPT): 1 1/2
HEX 1 (mm): -
HEX 2 (mm): 60
L (in): 3.07
Quick Ship: Limited
3D   View/Download
CAD File




Product #: 6611 50 44
øD (in): 2
øD (mm): 50
THREAD (NPT): 2
HEX 1 (mm): -
HEX 2 (mm): 60
L (in): 3.19
Quick Ship: Limited
3D   View/Download
CAD File





Back to Top

Simple Reducing Brackets

Product #: RA69 50 25
OD (in): 2
OD (mm): 50
OD2 (in): 1
OD2 (mm): 25
L (in): 1.46
Z (in): 1.30
Quick Ship: --
3D   View/Download
CAD File





Back to Top

Threaded NPT Simple Brackets

Product #: RA68 50N04
OD (in): 2
OD (mm): 50
THD Size (in): 1/2
HEX (mm): 30
L (in): 1.46
Z (in): 3.27
Quick Ship: --
3D   View/Download
CAD File




Product #: RA68 50N08
OD (in): 2
OD (mm): 50
THD Size (in): 1
HEX (mm): 41
L (in): 1.46
Z (in): 3.82
Quick Ship: --
3D   View/Download
CAD File





Back to Top

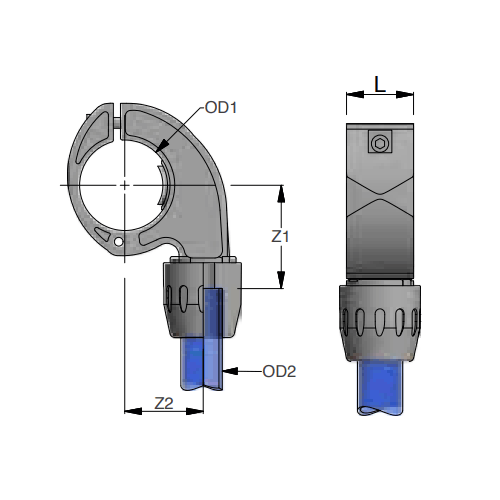

Quick Assembly Brackets

Product #: 6662 50 25
OD1 (in): 2
OD1 (mm): 50
OD2 (in): 1
OD2 (mm): 25
L (in): 1.46
Z1 (in): 2.28
Z2 (in): 1.73
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

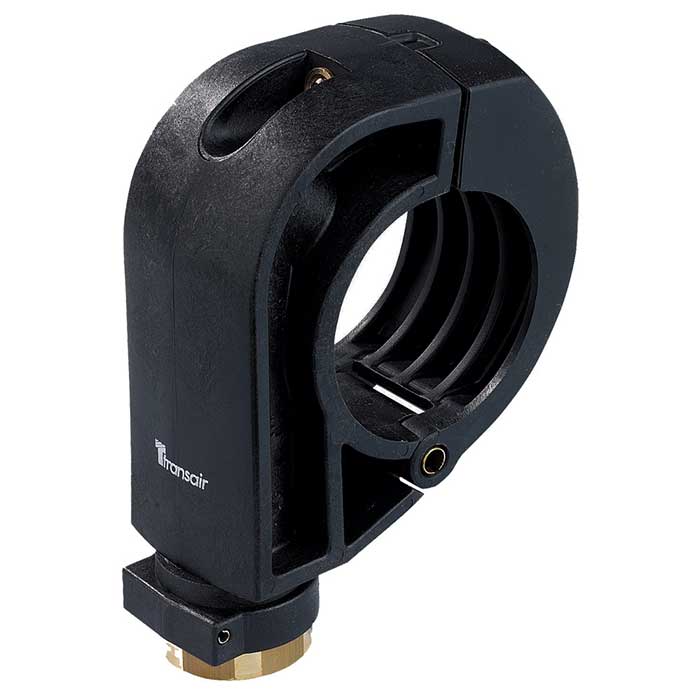

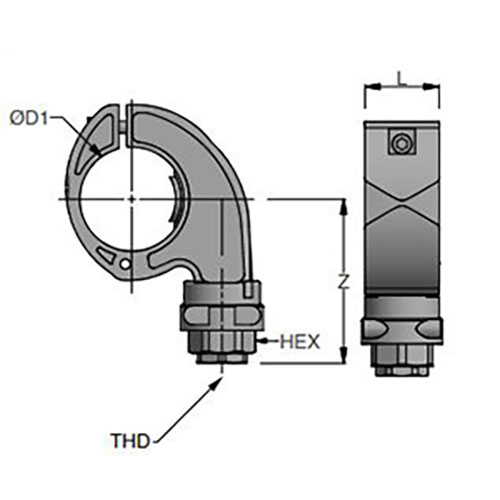

NPT Quick Assembly Brackets

Product #: 6663 50 22
OD1 (in): 2
OD1 (mm): 50
THD SIZE (in): 1/2
HEX (mm): 30
L (in): 1.46
Z (in): 2.95
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6663 50 28
OD1 (in): 2
OD1 (mm): 50
THD SIZE (in): 3/4
HEX (mm): 32
L (in): 1.46
Z (in): 3.31
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

NPT Quick Assembly Brackets With Ball Valve

Product #: 6668 50 22
OD (in): 2
OD (mm): 50
THD SIZE (in): 1/2
HEX (mm): 25
L (in): 9.76
Z (in): 5.22
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

Lockable Double Female Valve

Product #: 4092 50 00
ØD(in): 2
ØD(mm): 50
L (in): 8.96
Z1 (in): 2.36
Z2 (in): 1.69
H (in): 6.14
P (in): 3.54
Quick Ship: Yes
3D   View/Download
CAD File




Back to Top

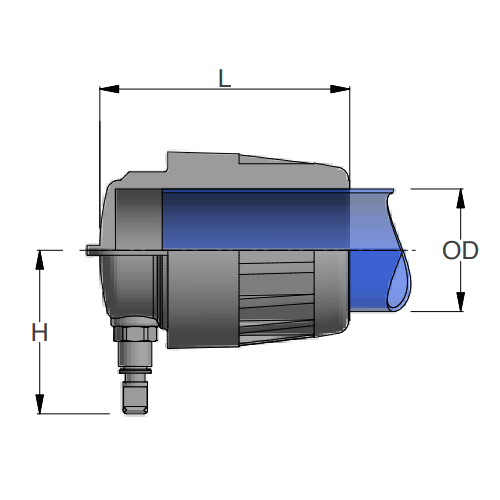

Vented End Cap

Product #: 6625 50 00
øD (in): 2
øD (mm): 50
L (in): 4.21
Z (in): 2.64
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

Pipe Hanger

Product #: 6697 50 01
øD (in): 2
øD (mm): 50
THD Size (in): 3/8-16 UNC
L (in): 2-7/8
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top
