Stainless Steel Drops

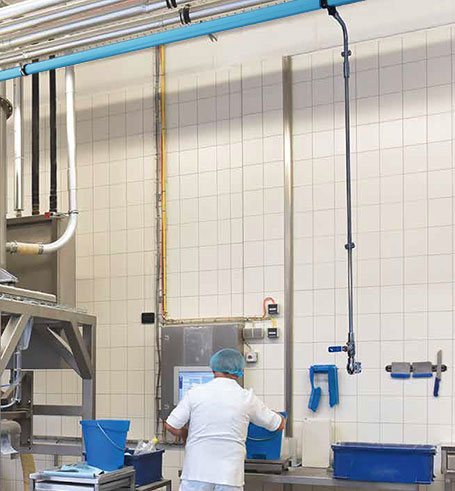

Diameter: 3/4" (22mm)To meet the requirements of compressed air and vacuum applications in harsh environments (food and beverage, pharmaceutical or laboratories), Transair® now offers a complete range of 3/4"(22mm) 316L stainless steel drops. These modular drops with instant connection technology are very easy to clean and are resistant to aggressive chemical agents. For food and beverage applications, these drops can be used in food or splash zones. Transair stainless steel pipe and drop connectors are made from 316L stainless steel, which is compatible to be in permanent food contact per FDA CFR21 requirements for food contact applications.
Transair Stainless Steel Drops can be connected to quick assembly brackets of Transair® Aluminium range and to quick assembly brackets of Transair® stainless steel range.
Click Here for Transair® Chemical Compatibility Chart
Click Here for Instructions for Assembly and Disassembly of Stainless Steel Drop Connectors
Note: California residents click here for Proposition 65 information
WARNING: This product can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer.
For more information go to www.p65Warnings.ca.gov
For more information go to www.p65Warnings.ca.gov
Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298
Request A Quote!
Click For Larger View3/4"(22mm) 316L Union Connector
Click For Larger View
Product #: RF06 N7 02
Seal: FKM
øD (in): ¾
øD (mm): 22
Hex (in): 1.26
L (in): 2.66
Weight (lb): 0.50
Seal: FKM
øD (in): ¾
øD (mm): 22
Hex (in): 1.26
L (in): 2.66
Weight (lb): 0.50
 |
|||||
 |
|||||
➤ Back to Top
3/4"(22mm) 316L 90 Degree Bent Pipe Elbow
Click For Larger View
Product #: RF02 N7 00
øD (in): ¾
øD (mm): 22
L (in): 7.50
L1 (in): 7.05
L2 (in): 4.86
Weight (lb): 0.60
øD (in): ¾
øD (mm): 22
L (in): 7.50
L1 (in): 7.05
L2 (in): 4.86
Weight (lb): 0.60
|
|||||
|
|||||
3/4"(22mm) 316L 90 Degree Elbow W/ FKM Seal
Click For Larger View
Product #: RF02 N7 02
Seal: FKM
øD (in): ¾
øD (mm): 22
Hex (in): 1.22
L (in): 2.36
L1 (in): 1.73
Weight (lb): 0.66
Seal: FKM
øD (in): ¾
øD (mm): 22
Hex (in): 1.22
L (in): 2.36
L1 (in): 1.73
Weight (lb): 0.66
|
|||||
|
|||||
➤ Back to Top
3/4"(22mm) 316L NPT Female Threaded Tee W/ FKM Seal
Click For Larger View
Product #: RF04 06 00
Seal: FKM
C (in): ¾
C (mm): 22
E (in): 0.65
G (in): 1.30
H (in): 1.71
J (in): 0.87
L2 (in): 1.71
Weight (lb): 0.67
Seal: FKM
C (in): ¾
C (mm): 22
E (in): 0.65
G (in): 1.30
H (in): 1.71
J (in): 0.87
L2 (in): 1.71
Weight (lb): 0.67
|
|||||
|
|||||
➤ Back to Top

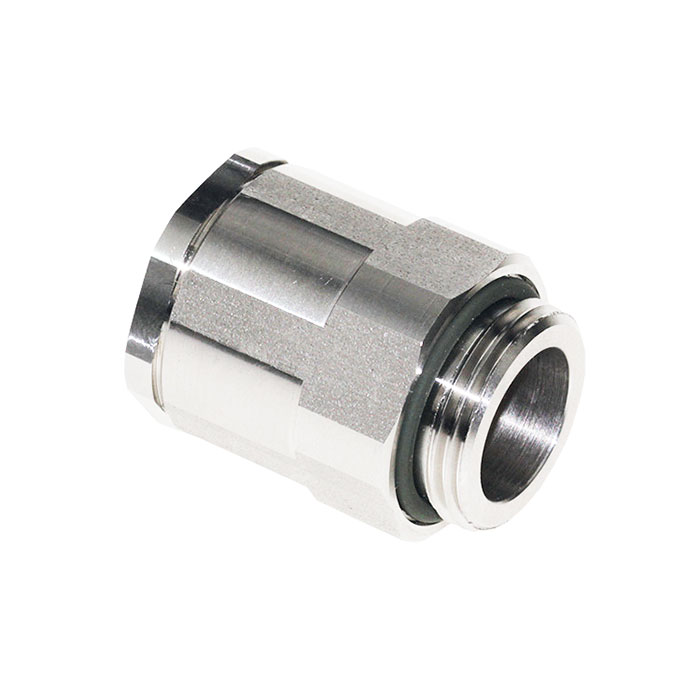

3/4"(22mm) 316L NPT Male Threaded Adapter
Click For Larger View
Product #: RF05 N7N06
Seal: FKM
C (in): ¾
C (mm): 22
E (in): 0.29
F (in): 1.22
H (in): 1.33
Weight (lb): 0.26
Seal: FKM
C (in): ¾
C (mm): 22
E (in): 0.29
F (in): 1.22
H (in): 1.33
Weight (lb): 0.26
|
|||||
|
|||||
➤ Back to Top

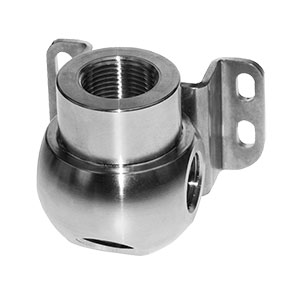

3/4"(22mm) 316L NPT 3 Port Wall Bracket
Click For Larger View
Product #: RF36 06N04
øD (in): ¾
øD (mm): 22
L (in): 3.22
H (in): 2.99
Weight (lb): 1.63
øD (in): ¾
øD (mm): 22
L (in): 3.22
H (in): 2.99
Weight (lb): 1.63
|
|||||
|
|||||
➤ Back to Top
Click For Larger View3/4"(22mm) 316L NPT Female to Female Lockable Ball Valve
Click For Larger View
Product #: VP502SS-12
Seal: PTFE
Thread Size (in): ¾
L (in): 6.67
Weight (lb): 1.57
Seal: PTFE
Thread Size (in): ¾
L (in): 6.67
Weight (lb): 1.57
|
|||||
|
|||||
➤ Back to Top
