Transair® Aluminum Pipe and Fittings
Diameter: 4"(101mm)

TransairPipeSales.com is your complete source for Transair 4" Pipe and Fittings. Transair® 4" Pipe and fittings are quick and easy to install.

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov

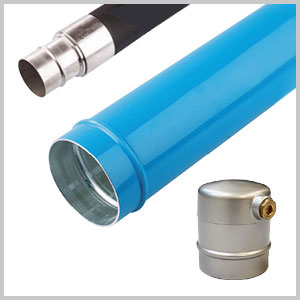

101mm Transair

4" Aluminum Pipe


Blue Aluminum Pipe - 20ft

Product #: TA16 L3 04
øD (in): 4
øD (mm): 101
L (ft): 20'
Weight (lb): 25.69

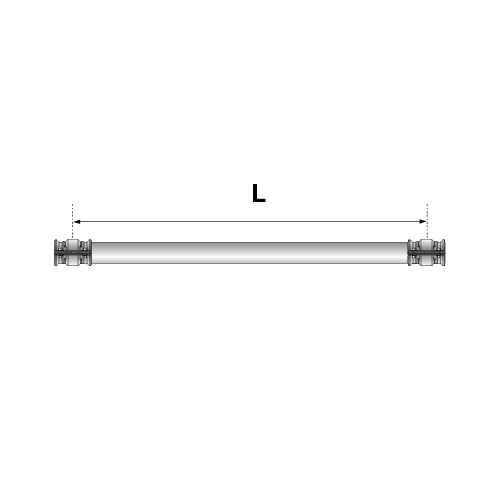

Gray Aluminum Pipe - 20ft

Product #: TA16 L3 06
øD (in): 4
øD (mm): 101
L (ft): 20'
Weight (lb): 25.69

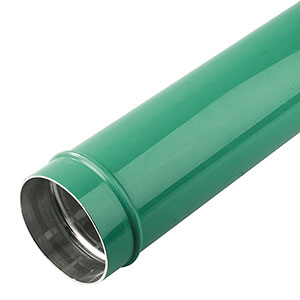

Green Aluminum Pipe - 20ft

Product #: TA16 L3 02
øD (in): 4
øD (mm): 101
L (ft): 20'
Weight (lb): 25.69





Back to Top

Flexible Hose

Product #: FP01 L3 02
OD (in): 4 ½
OD (mm): 116
ID (in): 4
ID (mm): 101
L (ft): 6’ 6"
MIN. BEND RADIUS (in): 18
For Use w/ Pipe Diameter(in): 4"
Quick Ship: No




Product #: FP01 L3 03
OD (in): 4 ½
OD (mm): 116
ID (in): 4
ID (mm): 101
L (ft): 9’ 10"
MIN. BEND RADIUS (in): 18
For Use w/ Pipe Diameter(in): 4"
Quick Ship: No





Use two connectors RR01 to connect flexible hoses to Transair® pipe.
Use (6698 99 03) Anti Whip-Lash Strap to Prevent whip-lash; should Transair® flexible hose be disconnected while under pressure


Back to Top

4" Connectors


90° Pipe to Pipe Elbows

Product #: RX02 L3 00
øD (in): 4
øD (mm): 101
L (in): 10.94
Z (in): 8.94
Quick Ship: Yes
3D   View/Download
CAD File





Use two connectors (RR01) to connect 90° elbow to Transair® pipe.

Back to Top

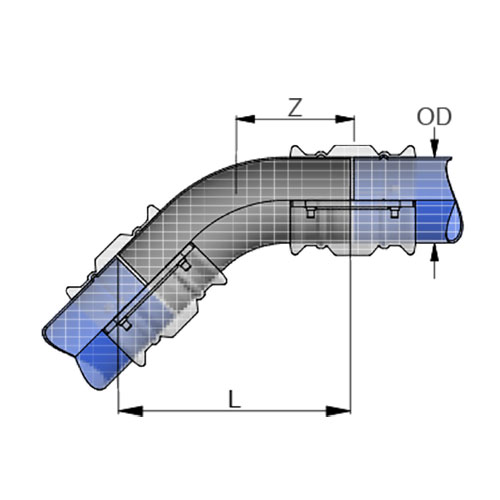

45° Pipe to Pipe Elbows

Product #: RX12 L3 00
øD (in): 4
øD (mm): 101
L (in): 10.69
Z (in): 5.43
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect 45° elbow to Transair® pipe


Back to Top

4" Tees

Equal Tees
Product #: RX04 L3 00
øD (in): 4
øD (mm): 101
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 5.35
Quick Ship: Yes
3D   View/Download
CAD File





Use three connectors (RR01) to connect equal tees to Transair® pipe.

Reducing Tees
Product #: RX24 L3 40
øD (in): 4
øD (mm): 101
øD2 (in):
øD2 (mm): 40
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 4.63
Quick Ship: Yes
3D   View/Download
CAD File




Product #: RX24 L3 50
øD (in): 4
øD (mm): 101
øD2 (in): 2
øD2 (mm): 50
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 6.81
Quick Ship: Yes
3D   View/Download
CAD File




Product #: RX24 L3 63
øD (in): 4
øD (mm): 101
øD2 (in):
øD2 (mm): 63
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 6.97
Quick Ship: Yes
3D   View/Download
CAD File




Product #: RX04 L3 L1
øD (in): 4
øD (mm): 101
øD2 (in): 3
øD2 (mm): 76
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 5.35
Quick Ship: Yes
3D   View/Download
CAD File





Use two connectors (RR01) to connect reducing tees (RX24) to Transair® Ø 4" pipes and use
one connector (6606) to connect Transair® Ø 1 ½" and Ø 2 ½" pipes.

Female Threaded NPT Tee
Product #: RX20 L3N04
øD (in): 4
øD (mm): 101
L (in): 12.28
Z1 (in): 6.14
Z2 (in): 2.98
THD Size (in): ½
Quick Ship: No
3D   View/Download
CAD File





Use two connectors (RR01) to connect threaded tees to Transair® pipe
Expanding Tee
Product #: RA04 L3 L8
øD (in): 4
øD (mm): 101
øD2 (in): 6
øD2 (mm): 168
L (in): 15.28
Z1 (in): 6.34
Z2 (in): 7.64
Quick Ship: No
3D   View/Download
CAD File





Use three connectors (RR01) to connect expanding tees to Transair® Ø 4" pipes.

Flanged Tees are found below

Back to Top

Equal Crosses

Product #: RA07 L3 00
øD (in): 4
øD (mm): 101
L (in): 12.68
Z (in): 6.34
Quick Ship: Yes
3D   View/Download
CAD File





Use four connectors (RR01) to connect equal crosses (RA07 L3 00) to Transair® Ø 4" pipes.

Back to Top

Pipe-to-Pipe Connectors (Union Clamp - Includes Cartridge)

Product #: RR01 L3 00
øD (in): 4
øD (mm): 101
L (in): 5.75
Quick Ship: Yes
3D   View/Download
CAD File




Union Clamp Replacement Cartridge
Product #: RP00 L3 00
øD (in): 4
øD (mm): 101
Quick Ship: No





Back to Top

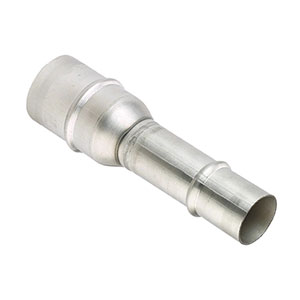

Plug-In Reducer

Product #: RX64 L3 50
øD (in): 4
øD (mm): 101
øD2 (in): 2
øD2 (mm): 50
L (in): 13.50
Quick Ship: Limited
3D   View/Download
CAD File




Product #: RX64 L3 63
øD (in): 4
øD (mm): 101
øD2 (in): 2 ½
øD2 (mm): 63
L (in): 9.84
Quick Ship: Yes
3D   View/Download
CAD File




Product #: RX66 L3 L1
øD (in): 4
øD (mm): 101
øD2 (in): 3
øD2 (mm): 76
L (in): 7.58
Quick Ship: Yes
3D   View/Download
CAD File





Use one connector (RR01) to connect plug-in reducers (RX64 and RX66) to Transair® Ø 4" pipes & one connector (6606) to connect to Transair® Ø 2 ½" pipe.

Back to Top

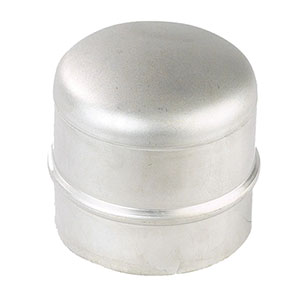

End Caps

Product #: RX25 L3 00
øD (in): 4
øD (mm): 101
L (in): 4.23
Quick Ship: Yes
3D   View/Download
CAD File




End Cap with Plug
Product #: RA25 L3 04
øD (in): 4
øD (mm): 101
L (in): 4.84
Z (in): 2.40
Quick Ship: No
3D   View/Download
CAD File




Supplied with a ½" BSP threaded plug

Use one connector (RR01) to connect end caps to Transair pipe.


Back to Top

4" Flanged Connectors

1 Flanged Tee
Product #: RA44 L3 00 46
øD1 (in): 4
øD1 (mm): 101
Flange Size (in): 4
øD2 (in): 9.06
T (in): 0.97
L (in): 14.96
Z1 (in): 6.34
Standard: ANSI
3D   View/Download
CAD File





Use two connectors (RR01) to connect 1 flanged tees to Transair® pipe.
3 Flanged Cross
Product #: RA07 L3 03 46
øD1 (in): 4
øD1 (mm): 101
Flange Size (in): 4
øD2 (in): 9.06
T (in): 0.97
L (in): 17.24
Z1 (in): 8.62
Z2 (in): 6.34
Standard: ANSI
3D   View/Download
CAD File





Use one connector (RR01) to connect 3 flanged crosses to Transair® pipe.
Flange Adapter – DIN
Product #: RA30 L3 00
øD1 (in): 4
øD1 (mm): 101
DN: 100
NO. of Bolt Holes: 8
L (in): 4.20
T (in): 0.97
D (in): 7.09
Quick Ship: Limited
3D   View/Download
CAD File





Use one connector (RR01) to connect flanges to Transair Ø 4" pipes.
Flange Adapter – ANSI
Product #: RA31 L3 00
øD1 (in): 4
øD1 (mm): 101
DN: 100
NO. of Bolt Holes: 8
L (in): 4.20
T (in): 0.97
D (in): 7.50
Quick Ship: Yes
3D   View/Download
CAD File





Use one connector (RR01) to connect flanges to Transair Ø 4" pipes.
Aluminum Male Threaded NPT Flange Adapter
Product #: RA33 L3N24
øD (in): 4
øD (mm): 101
DN: 100
NO. of Bolt Holes: 8
L (in): 3.60
T (in): 0.97
D (in): 7.50
THD Size (NPT): 3
Quick Ship: No
3D   View/Download
CAD File




ANSI standard flanges

Back to Top

Y Connectors

Equal Y
Product #: RA26 L3 00
øD1 (in): 4
øD1 (mm): 101
L (in): 15.59
Z1 (in): 4.57
Z2 (in): 11.02
Quick Ship: No
3D   View/Download
CAD File





Use three connectors (RR01) to connect equal Y to Transair® Ø 4" pipes.

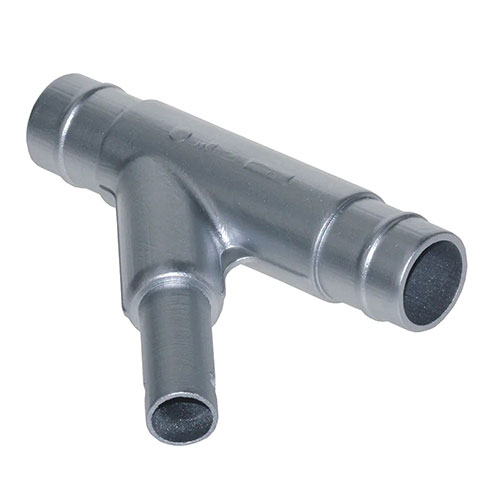

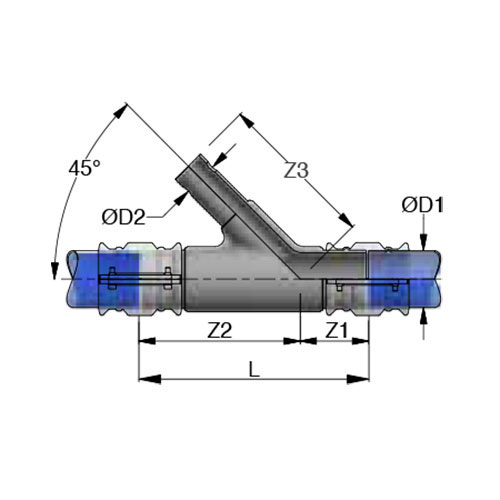

Reducing Y
Product #: RA26 L3 63
ØD1 (in): 4
ØD1 (mm): 101
ØD2 (in): 2 ½
ØD2 (mm): 63
L (in): 15.59
Z1 (in): 4.57
Z2 (in): 11.02
Z3 (in): 11.02
3D   View/Download
CAD File





Use two connectors (RR01) and one connector (6606) to connect reducing Y (RA26 L3 63) to Transair® Ø 2 ½" pipes.
Product #: RA26 L3 L1
ØD1 (in): 4
ØD1 (mm): 101
ØD2 (in): 3
ØD2 (mm): 76
L (in): 15.59
Z1 (in): 4.57
Z2 (in): 11.02
Z3 (in): 11.02
3D   View/Download
CAD File





Use three connectors (RR01) to connect reducing Y (RA26 L3 L1) to Transair® Ø 3" pipes.

Back to Top

Female Threaded NPT Saddle Reducing Bracket

Product #: RR63 L3N08
ØD (in): 4
ØD (mm): 101
ØD2 (in): 1
ØD2 (mm): 25
L (in): 3.54
X (in): 6.30
HEX (mm): 36
Quick Ship: Yes
3D   View/Download
CAD File





Nitrile Seals. Supplied with Ø 1" adaptor (6621 25 35). To drill Transair® pipe, use drilling tool EW09.

Back to Top

4" Valves

Ball Valve
Product #: VR01 L3 00 46
ØD(in): 4
ØD(mm): 101
DN: 100
L (in): 14.17
Z (in): 7.48
D (in): 7.50
Number Of Bolt Holes: 8
Quick Ship: No





Flange Part NO. (RA31 L3 00) | Gasket Part NO. (EW05 L3 00) | Bolt Kit Part NO. (EW10 00 15US) | MAX. Tightening Torque(FT-LBS): 59
Butterfly Valve
Product #: VR02 L3 00US
ØD(in): 4
ØD(mm): 101
Flange Std: ANSI
DN: 100
D (in): 7.50
THD Size (UNC-2B): 5⁄8 - 11
Number Of Bolt Holes: 8
L (in): 5.91
H (in): 7.09
T (in): 2.00
Quick Ship: No




Not supplied with handle or bolt kit
Flange Part NO. (RA31 L3 00) | Bolt Kit Part NO. (EW10 00 US) | MAX. Tightening Torque(FT-LBS): 59 | Max. Pressure: 175 PSI (12 bar)

Back to Top

4" Rubber Insulated Pipe Hangers

Product #: ER01 L3 00
ØD(in): 4
ØD(mm): 101
THD Size (in): 3⁄8-16 UNC
Quick Ship: No






Back to Top
