Transair® Aluminum Pipe and Fittings
Diameter: 1-1/2"(40mm)

TransairPipeSales.com is your complete source for Transair 1-1/2" Pipe and Fittings. Transair® 1-1/2" Pipe and fittings are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
40mm Transair

Aluminum Pipe


Blue Aluminum Pipe - 9ft

Product #: 1012A40 04 00
øD (in): 1-1/2
øD (mm): 40
L (ft): 9'
Weight: (lb): 2.98
Quick Ship: Yes




*Pipe must be ordered in
box quantities.

Blue Aluminum Pipe - 20ft

Product #: 1016A40 04 00
øD (in): 1-1/2
øD (mm): 40
L (ft): 20
Weight: (lb): 6.22
Quick Ship: Yes




*Pipe must be ordered in
box quantities.

Gray Aluminum Pipe - 20ft

Product #: 1016A40 06 00
øD (in): 1-1/2
øD (mm): 40
L (ft): 20
Weight: (lb): 6.22
Quick Ship: --




*Pipe must be ordered in
box quantities.

Green Aluminum Pipe - 20ft

Product #: 1016A40 02 00
øD (in): 1-1/2"
øD (mm): 40
L (ft): 20
Weight: (lb): 6.22
Quick Ship: --




*Pipe must be ordered in
box quantities.

Back to Top

Flexible Hose

Product #: 1001E40 00 02
OD (in): 2-1/8
OD (mm): 54
ID (in): 1-1/2
ID (mm): 40
L (in): 3' 9"
MIN. BEND RADIUS (in): 16
For Use w/ Pipe Diameter(in): 1-1/2"
Quick Ship: Yes




Product #: 1001E40 00 04
OD (in): 2-1/8
OD (mm): 54
ID (in): 1-1/2
ID (mm): 40
L (in): 6' 6"
MIN. BEND RADIUS (in): 16
For Use w/ Pipe Diameter(in): 1-1/2
Quick Ship: --




Product #: 1001E40 00 05
OD (in): 2-1/8
OD (mm): 54
ID (in): 1-1/2
ID (mm): 40
L (in): 9'10"
MIN. BEND RADIUS (in): 16
For Use w/ Pipe Diameter(in): 1-1/2
Quick Ship: --





Back to Top

Connectors


90° Pipe to Pipe Elbows

Product #: 6602 40 00
øD (in): 1 1/2
øD (mm): 40
L (in): 4.06
Z (in): 2.44
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

45° Pipe to Pipe Elbows

Product #: 6612 40 00
øD (in): 1-1/2
øD (mm): 40
L (in): 6.77
Z (in): 1.77
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

Male NPT Threaded 90° Elbows

Product #: 6609 40 35
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1
HEX (mm): 41
L (in): 5.40
Z1 (in):2.44
Z2 (in): 4.13
Z2 (mm): 2.95
Quick Ship: --
3D   View/Download
CAD File




Product #: 6609 40 43
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/4
HEX (mm): 50
L (in): 5.40
Z1 (in): 2.44
Z2 (in): 4.33
Z2 (mm): 3.15
Quick Ship: --
3D   View/Download
CAD File




Product #: 6609 40 50
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/2
HEX (mm): 50
L (in): 5.40
Z1 (in): 2.44
Z2 (in): 4.33
Z2 (mm): 3.15
Quick Ship: Yes




Product #: 6609 40 44
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 2
HEX (mm): 60
L (in): 5.40
Z1 (in): 2.44
Z2 (in): 4.76
Z2 (mm): 3.35
Quick Ship: --
3D   View/Download
CAD File




Back to Top

Male NPT Threaded 45° Elbows

Product #: 6619 40 35
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1
HEX (mm): 41
L (in): 3.70
Z1 (in): 1.77
Z2 (in): 2.30
Quick Ship: --
3D   View/Download
CAD File




Product #: 6619 40 43
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/4
HEX (mm): 50
L (in): 3.70
Z1 (in): 1.77
Z2 (in): 2.52
Quick Ship: --
3D   View/Download
CAD File




Product #: 6619 40 50
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/2
HEX (mm): 50
L (in): 3.70
Z1 (in): 1.77
Z2 (in): 2.52
Quick Ship: --
3D   View/Download
CAD File




Product #: 6619 40 44
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 2
HEX (mm): 60
L (in): 3.70
Z1 (in): 1.77
Z2 (in): 2.52
Quick Ship: --
3D   View/Download
CAD File




Back to Top

Male NPT Threaded Connectors

Product #: 6605 40 35
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1
HEX (mm): 41
L (in): 4.53
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6605 40 43
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/4
HEX (mm): 41
L (in): 4.51
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6605 40 50
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 1-1/2
HEX (mm): 50
L (in): 4.63
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6605 40 44
øD (in): 1-1/2
øD (mm): 40
THD SIZE (in): 2
HEX (mm): 70
L (in): 4.73
Quick Ship: Yes
3D   View/Download
CAD File




Back to Top

Male NPT Threaded Connectors with Fixing Plate

Product #: 6615 40 43
øD (in): 1-1/2
øD (mm): 40
Thread NPT (in): 1-1/4
Hex (mm): 50
L (in): 4.76
Z (in): 1.81
Quick Ship: --




Product #: 6615 40 50
øD (in): 1-1/2
øD (mm): 40
Thread NPT (in): 1-1/2
Hex (mm): 50
L (in): 4.76
Z (in): 1.81
Quick Ship: --





Back to Top

Male NPT Threaded Pipe Adapters

Product #: 6621 40 43
øD (in): 1-1/2
øD (mm): 40
Thread NPT (in): 1-1/4
Hex (mm): 46
L (in): 3.75
Z (in): 2.90
Quick Ship: --
3D   View/Download
CAD File




Product #: 6621 40 50
øD (in): 1-1/2
øD (mm): 40
Thread NPT (in): 1-1/2
Hex (mm): 50
L (in): 3.84
Z (in): 2.98
Quick Ship: --
3D   View/Download
CAD File





Back to Top

Equal Tees

Product #: 6604 40 00
øD (in): 1-1/2
øD (mm): 40
L (in): 8.07
Z1 (in): 2.26
Z2 (in): 2.26
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

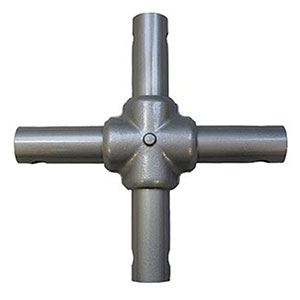

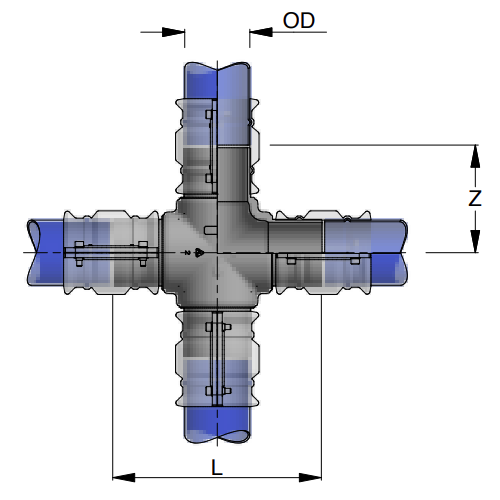

Equal Crosses

Product #: RA07 40 00
øD (in): 1-1/2
øD (mm): 40
L (in): 9.92
Z (in): 4.96
Quick Ship: Yes
3D   View/Download
CAD File





Use four connectors (6606) to connect equal crosses (RA07 40 00, RA07 50 00,
and RA07 63 00) to Transair® Ø 1 1/2", Ø 2", and Ø 2 1/2" pipes.


Back to Top

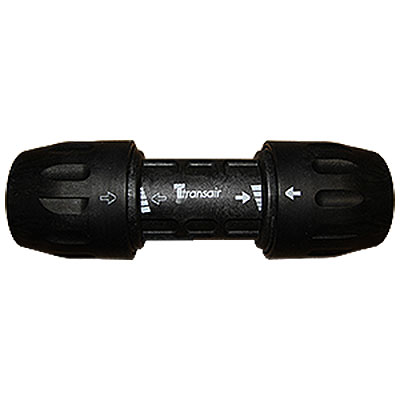

Pipe-to-Pipe Connectors (Unions)

Product #: 6606 40 00
øD (in): 1-1/2
øD (mm): 40
L (in): 8.07
Z (in): 2.26
Quick Ship: Yes
3D   View/Download
CAD File





Pipe-to-Pipe Connectors (Unions) with Vent

Product #: 6676 40 00
øD (in): 1-1/2
øD (mm): 40
L (in): 8.07
Z (in): 2.26
Quick Ship: --
3D   View/Download
CAD File





Back to Top

Male NPT Threaded Stud Nuts

Product #: 6611 40 35
øD (in): 1-1/2
øD (mm): 40
THREAD (NPT): 1
HEX 1 (mm): 65
HEX 2 (mm): 41
L (in): 2.11
Quick Ship: Limited




Product #: 6611 40 43
øD (in): 1-1/2
øD (mm): 40
THREAD (NPT): 1-1/4
HEX 1 (mm): 65
HEX 2 (mm): 50
L (in): 2.34
Quick Ship: Limited




Product #: 6611 40 50
øD (in): 1-1/2
øD (mm): 40
THREAD (NPT): 1-1/2
HEX 1 (mm): 65
HEX 2 (mm): 50
L (in): 2.56
Quick Ship: Limited




Product #: 6611 40 44
øD (in): 1-1/2
øD (mm): 40
THREAD (NPT): 1-1/2
HEX 1 (mm): 65
HEX 2 (mm): 50
L (in): 2.56
Quick Ship: Limited





Back to Top

Simple Reducing Brackets

Product #: RA69 40 25
OD (in): 1-1/2
OD (mm): 40
OD2 (in): 1
OD2 (mm): 25
L (in): 1.46
Z (in): 1.77
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

Threaded NPT Simple Brackets

Product #: RA68 40N04
OD (in): 1-1/2
OD (mm): 40
THD Size (in): 1/2
HEX (mm): 30
L (in): 1.46
Z (in): 2.87
Quick Ship: Limited
3D   View/Download
CAD File





Back to Top

Quick Assembly Brackets

Product #: 6662 40 17
OD1 (in): 1-1/2
OD1 (mm): 40
OD2 (in): 1/2
OD2 (mm): 16.5
L (in): 1-1/2
Z (in): 3-1/2
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6662 40 25
OD1 (in): 1-1/2
OD1 (mm): 40
OD2 (in): 1
OD2 (mm): 25
L (in): 1-1/2
Z (in): 3-1/4
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

NPT Quick Assembly Brackets

Product #: 6663 40 22
OD1 (in): 1-1/2
OD1 (mm): 40
THD SIZE (in): 1/2
HEX (mm): 24
L (in): 1.46
Z (in): 4.09
Quick Ship: Yes
3D   View/Download
CAD File





Back to Top

NPT Quick Assembly Brackets With Ball Valve

Product #: 6668 40 22
OD (in): 1-1/2
OD (mm): 40
THD SIZE (in): 1/2
HEX (mm): 25
L (in): 10.67
Z (in): 6.38
Quick Ship: Yes





Back to Top

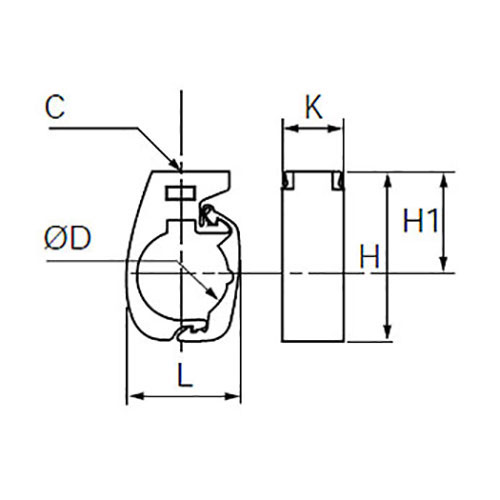

Fixing Clip for Rigid Pipe

Product #: 6697 40 01
øD (in): 1-1/2
øD (mm): 40
C (in): 1/4
H1 (in): 1-13/16
H (in): 2-7/8
K (in): 1-3/16
L (in): 2
Quick Ship: Yes





Back to Top

Lockable Double Female Valve

Product #: 4092 40 00
ØD(in): 1-1/2
ØD(mm): 40
L (in): 8.07
Z1 (in): 2.20
Z2 (in): 2.28
H (in): 5.55
P (in): 2.99
Quick Ship: Yes
3D   View/Download
CAD File





Remote Control Shut-Off Valves

Product #: 4230 00 40
ØD(in): 1-1/2
ØD(mm): 40
L (in): 10 1/4
Z (in): 3 3/8
Quick Ship: --





Min. working pressure: 58 PSI • Max. working pressure: 232 PSI. The Transair® remote control shut-off valve is supplied with a plugged vent hole. This allows venting of the downstream network, after closing the valve. Pilot kit (4299 03 01) is needed for installation.

Remote Control Shut-Off Valve Pilot Kits

Product #: 4299 03 01
H (in): 5 3/4
L (in): 3 3/16
Quick Ship: --





Back to Top

Vented End Cap

Product #: 6625 40 00
øD (in): 1 1/2
øD (mm): 40
E (in): 13⁄8
øG (in): 25⁄8
H (in): 23⁄16
L (in): 37⁄8
Quick Ship: Yes
3D   View/Download
CAD File





supplied with LF3000 5/16" plug.


Back to Top

4 Port Manifolds

Product #: 6651 40 12 04
øD (in): 1 1/2
øD (mm): 40
L (in): 15.87
Z (in): 6.02
L1 (in): 1.89
N (in): 1.97
Quick Ship: --
3D   View/Download
CAD File





Supplied with four Ø12 mm plugs.
1" supplied with 3/8" BSPP ports.

6 Port Manifolds

Product #: 6653 40 22 06
øD (in): 1 1/2
øD (mm): 40
L (in): 20.71
Z (in): 8.54
L1 (in): 2.44
N (in): 1.97
K (in): 17.64
3D   View/Download
CAD File





Supplied with four Ø12 mm plugs.
1" supplied with 3/8" BSPP ports.

Back to Top
