Transair® Stainless Steel Wall Brackets
TransairPipeSales.com is your complete source for Transair Stainless Steel Wall Brackets. Transair Wall Brackets make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air as well as industrial/inert gas applications. To match the needs/constraints of the environment, Parker offers a one (1), two (2), or three (3) port options. For extra control and safety over the media flow, Parker offers select wall brackets with an integrated ball valve. All wall brackets are equipped with a drain outlet for easy air or moisture drainage.

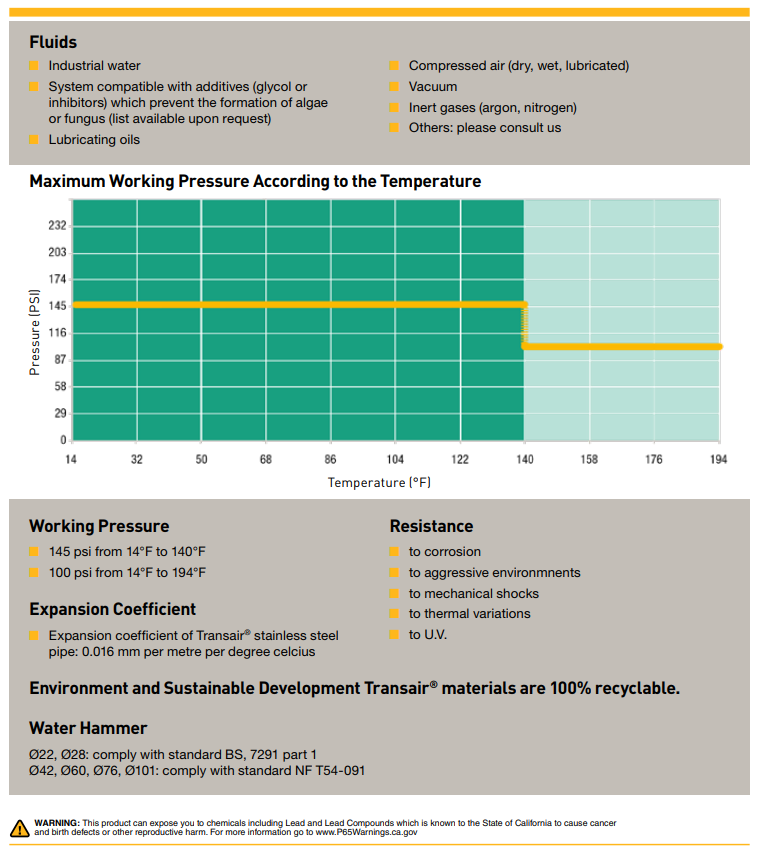

All wall brackets are 100% recyclable, silicone free, and made from materials with no propagation of flame. All wall brackets conform to the UL94HB standard. Transair® Technical Data
Note: California residents click here for Proposition 65 information
WARNING:
These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm.
For more information go to www.p65Warnings.ca.gov
• Threaded NPT 1 Port 45° Wall Bracket
• Threaded NPT 2 Port 45° Wall Bracket
• Threaded NPT 2 Port 90° Wall Bracket
• Threaded NPT 3 Port Wall Bracket
• Threaded NPT 2 Port 45° Wall Bracket
• Threaded NPT 2 Port 90° Wall Bracket
• Threaded NPT 3 Port Wall Bracket

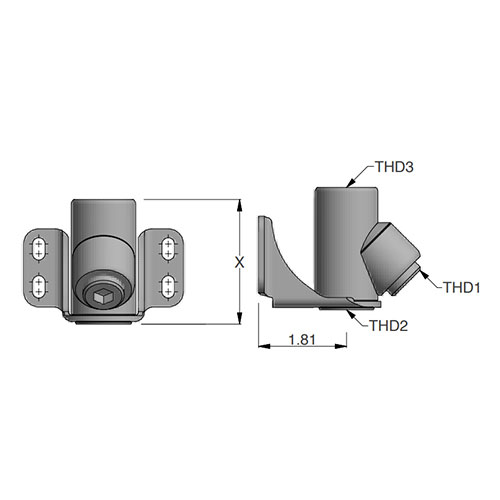

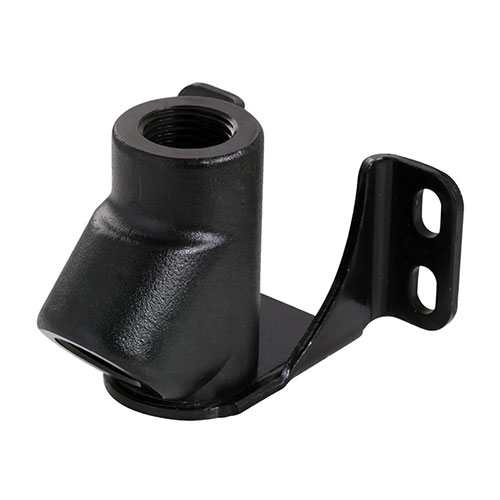

Threaded NPT 1 Port 45° Wall Bracket
Click For Larger View
Click For Larger View
Product #: 6642 22 22
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.52
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.52
 |
|||||
 |
|||||
➤ Back to Top
Threaded NPT 2 Port 45° Wall Bracket
Click For Larger View
Click For Larger View
Product #: 6691 22 22
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.52
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.52
|
|||||
|
|||||
➤ Back to Top

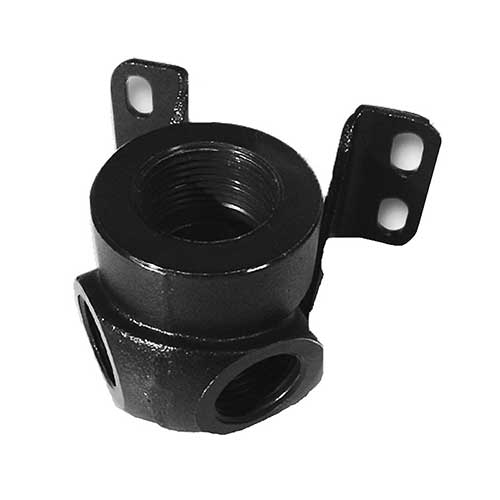

Threaded NPT 2 Port 90° Wall Bracket
Click For Larger View
Click For Larger View
Product #: 6688 22 22
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.03
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ½
X (in): 2.03
|
|||||
|
|||||
➤ Back to Top

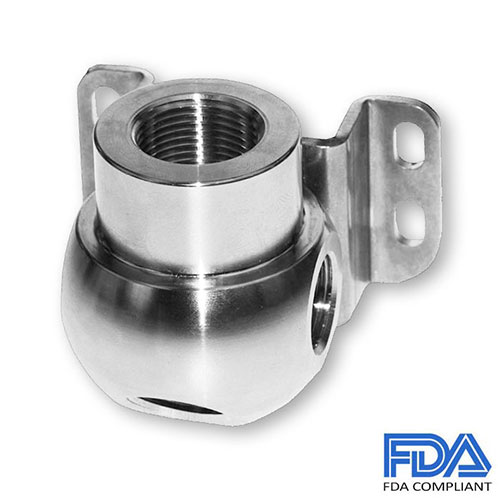

Threaded NPT 3 Port Wall Bracket
Click For Larger View
Click For Larger View
Product #: RF36 06N04
Body Materials: 316L Stainless Steel
ØD (in): ¾
ØD (mm): 22
L (in): 3.22
H (in): 2.99
Weight (lbs): 1.63
Body Materials: 316L Stainless Steel
ØD (in): ¾
ØD (mm): 22
L (in): 3.22
H (in): 2.99
Weight (lbs): 1.63
|
|||||
|
|||||
Click For Larger View
Click For Larger View
Product #: 6636 28 22
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ¾
X (in): 2.52
Body Materials: Brass
THD Size 1 (in): ½
THD Size 2 (in): ¼
THD Size 3 (in): ¾
X (in): 2.52
|
|||||
|
|||||
➤ Back to Top
