Transair® Aluminum Pipe and Fittings
Diameter: 1/2"(16.5mm)

TransairPipeSales.com is your complete source for Transair 1/2" Pipe and Fittings. Transair® 1/2" Pipe and fittings are quick and easy to install.
➤ Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
• Aluminum Pipe
• 90° Pipe to Pipe Elbows
• Male NPT Threaded 90° Elbows
• Male NPT Threaded Connectors
• Male NPT Threaded Pipe Adapters
• Equal Tees
• Pipe-to-Pipe Connectors (Unions)
• Male Stud Nuts
• Wall Brackets
• Wall Brackets w/ Ball Valves
• Lockable Valves
• Vented End Caps
• Plug-In Reducers
• Fixing Clips
17mm Transair

Aluminum Pipe

Blue Aluminum Pipe - 9ft

Product #: 1014A17 04 00
øD (in): 1/2
øD (mm): 16.5
L (ft): 9'
Weight: (lb): 1.37
Quick Ship: Yes




*Pipe must be ordered in
box quantities.

Blue Aluminum Pipe - 15ft

Product #: 1014A17 04
øD (in): 1/2
øD (mm): 16.5
L (ft): 15
Weight: (lb): 2.11
Quick Ship: Yes




*Pipe must be ordered in
box quantities.

Gray Aluminum Pipe - 9ft

Product #: 1012A17 06 00
øD (in): 1/2
øD (mm): 16.5
L (ft): 9
Weight: (lb): 1.37
Quick Ship: --




*Pipe must be ordered in
box quantities.

Green Aluminum Pipe - 9ft

Product #: 1014A17 02
øD (in): 1/2
øD (mm): 16.5
L (ft): 9
Weight: (lb): 1.37
Quick Ship: --




*Pipe must be ordered in
box quantities.

➤ Back to Top

Connectors

90° Pipe to Pipe Elbows

Product #: 6602 17 00
øD (in): 1/2
øD (mm): 16.5
L (in): 2 1/4
Z (in): 1 1/4
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Male NPT Threaded 90° Elbows

Product #: 6609 17 14
øD (in): 1/2
øD (mm): 16.5
THD SIZE (in): 1/4
HEX (mm): 17
L (in): 2.95
Z1 (in): 1.22
Z2 (in): 2.29
Quick Ship: --
3D   View/Download
CAD File




Product #: 6609 17 22
øD (in): 1/2
øD (mm): 16.5
THD SIZE (in): 1/2
HEX (mm): 23
L (in): 2.95
Z1 (in): 1.22
Z2 (in): 2.50
Quick Ship: --
3D   View/Download
CAD File




➤ Back to Top

Male NPT Threaded Connectors

Product #: 6605 17 14
øD (in): 1/2
øD (mm): 16.5
THD SIZE (in): 1/4
HEX (mm): 20
L (in): 2.52
Quick Ship: Yes
3D   View/Download
CAD File




Product #: 6605 17 22
øD (in): 1/2
øD (mm): 16.5
THD SIZE (in): 1/2
HEX (mm): 24
L (in): 2.64
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Male NPT Threaded Pipe Adapters

Product #: 6621 17 22
øD (in): 1/2
øD (mm): 16.5
C (in): 1/2
L (in): 1 11/16
H (in): 3/16
Quick Ship: --
3D   View/Download
CAD File





➤ Back to Top

Equal Tees

Product #: 6604 17 00
øD (in): 1/2
øD (mm): 16.5
L (in): 4.8
Z1 (in): 1.4
Z2 (in): 1.30
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Pipe-to-Pipe Connectors (Unions)

Product #: 6606 17 00
øD (in): 1/2
øD (mm): 16.5
L (in): 4.8
Z (in): 1.38
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Male NPT Threaded Stud Nuts

Product #: 6611 17 22
øD (in): 1/2
øD (mm): 16.5
THREAD (NPT): 1/2
HEX 1 (mm): 32
HEX 2 (mm): 23
L (in): 1.65
Quick Ship: Limited





➤ Back to Top

Wall Brackets

1 Port 45° Wall Bracket, NPT

Product #: 6640 17 22
øD (in): 1/2
øD (mm): 16.5
THRD 1 (NPT): 1/2
THRD 2 (NPT): 1/4
X (in): 2.5
Z (in): 2.5
Quick Ship: Limited
3D   View/Download
CAD File





1 Port 45° Threaded Wall Bracket, NPT

Product #: 6642 22 22
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
THD SIZE 3 (in): 1/2
X (in): 2.52
Quick Ship: --
3D   View/Download
CAD File

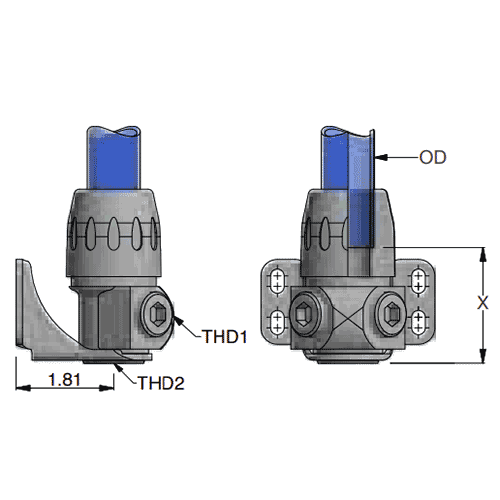

2 Port 90° Wall Bracket

Product #: 6684 17 22
ØD(in): 1/2
ØD(mm): 16.5
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
X (in): 2.05
Quick Ship: --
3D   View/Download
CAD File





2 Port 45° Wall Bracket, Threaded NPT Port

Product #: 6689 17 22
ØD(in): 1/2
ØD(mm): 16.5
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
L (in): 2.5
X (in): 2 1/2
Quick Ship: Yes
3D   View/Download
CAD File

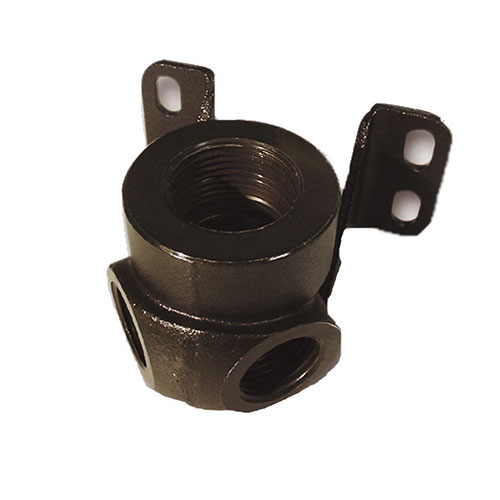

2 Port 90° Threaded Wall Bracket, NPT

Product #: 6688 22 22
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
THD SIZE 3 (in): 1/2
X (in): 2.03
Quick Ship: --
3D   View/Download
CAD File





2 Port 45° Threaded Wall Bracket, NPT

Product #: 6691 22 22
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
THD SIZE 3 (in): 1/2
X (in): 2.52
Quick Ship: --
3D   View/Download
CAD File





➤ Back to Top

1 port 45° Wall Bracket With Ball Valve, NPT Port

Product #: 6679 17 22
ØD(in): 1/2
ØD(mm): 16.5
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
X (in): 4.09
H (in): 3.77
Quick Ship: --
3D   View/Download
CAD File





2 port 45° Wall Bracket With Ball Valve, NPT Port

Product #: 6694 17 22
ØD(in): 1/2
ØD(mm): 16.5
THD SIZE 1 (in): 1/2
THD SIZE 2 (in): 1/4
X (in): 4.09
H (in): 3.77
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Lockable Valves

Product #: 4092 17 00
ØD(in): 1/2
ØD(mm): 16.5
L (in): 4.84
Z1 (in): 1.14
Z2 (in): 1.69
H (in): 3.77
P (in): 2.01
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Vented End Caps

Product #: 6625 17 00
ØD(in): 1/2
ØD(mm): 16.5
L (in): 2.46
Z (in): 1.79
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

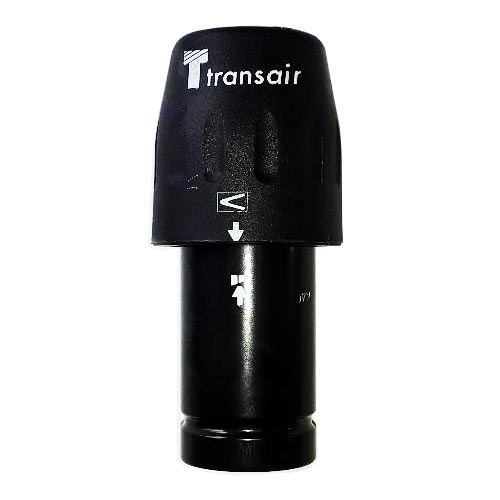

Plug-In Reducer

Product #: 6666 17 25
ØD1(in): 1
ØD1(mm): 25
ØD2(in): 1/2
ØD2(mm): 16.5
L (in): 3.05
Z (in): 2.03
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top

Fixture Accessories

Fixing Clip for Rigid Pipe

Product #: 6697 17 01
ØD1(in): 1
ØD1(mm): 25
ØD2(in): 1/2
ØD2(mm): 16.5
L (in): 3.05
Z (in): 2.03
Quick Ship: Yes
3D   View/Download
CAD File





➤ Back to Top
