Transair® Aluminum Pipe and Fittings
Diameter: 3"(76mm)

TransairPipeSales.com is your complete source for Transair 3" Pipe and Fittings. Transair® 3" Pipe and fittings are quick and easy to install.

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
Quick Menu
  • Aluminum Pipe
  • Flexible Hose
  • 90° Pipe to Pipe Elbows
  • 45° Pipe to Pipe Elbows
  • Tees
  • Equal Crosses
  • Pipe-to-Pipe (Unions)

  • Plug-In Reducer
  • End Caps
  • Flanged Connectors
  • Male Threaded NPT Adapter
  • Y Connectors
  • (F) Threaded NPT Saddle Reducing Bracket
  • Valves
  • Pipe Hangers
    • 76mm Transair

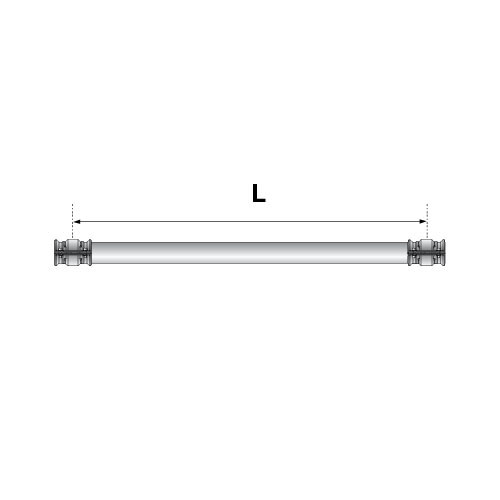

    3" Aluminum Pipe

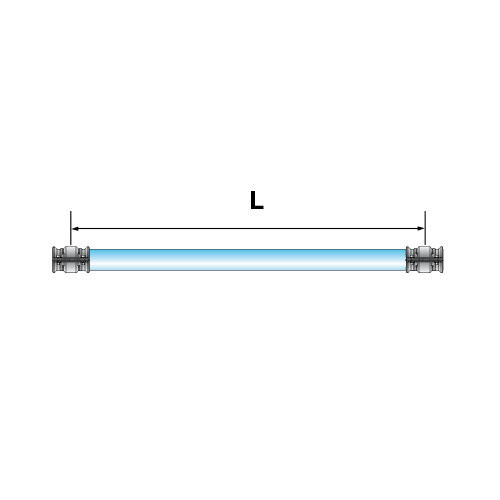

    Blue Aluminum Pipe - 20ft

    Product #: TA16 L1 04
    øD (in): 3
    øD (mm): 76
    L (ft): 20'
    Weight (lb): 16.98

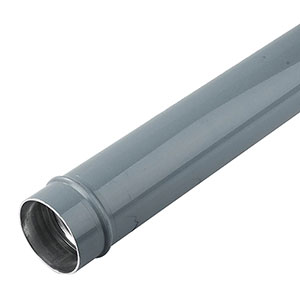

    Gray Aluminum Pipe - 20ft

    Product #: TA16 L1 06
    øD (in): 3
    øD (mm): 76
    L (ft): 20'
    Weight (lb): 16.98





    Green Aluminum Pipe - 20ft

    Product #: TA16 L1 02
    øD (in): 3
    øD (mm): 76
    L (ft): 20'
    Weight (lb): 16.98





    ➤ Back to Top

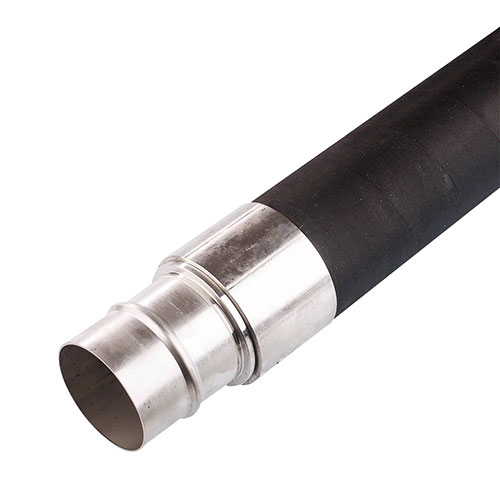

    Flexible Hose

    Product #: FP01 L1 01
    øD (in): 3 4⁄7
    øD (mm): 91
    ID (in): 3
    ID (mm): 76
    L (ft): 4’ 11"
    MIN. BEND RADIUS (in): 14
    For Use w/ Pipe Diameter(in): 3"
    Quick Ship: No




    Product #: FP01 L1 02
    øD (in): 3 4⁄7
    øD (mm): 91
    ID (in): 3
    ID (mm): 76
    L (ft): 6’ 6"
    MIN. BEND RADIUS (in): 14
    For Use w/ Pipe Diameter(in): 3"
    Quick Ship: No





    Use two connectors RR01 to connect flexible hoses to Transair® pipe.
    Use (6698 99 03) Anti Whip-Lash Strap to Prevent whip-lash; should Transair® flexible hose be disconnected while under pressure

    ➤ Back to Top

    3" Connectors

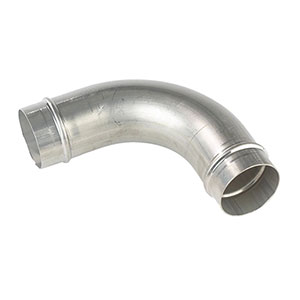

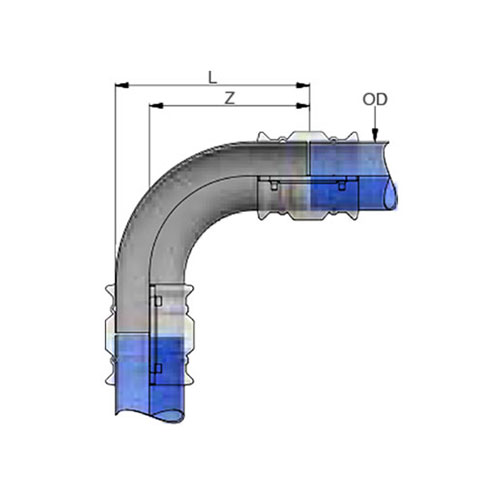

    90° Pipe to Pipe Elbows

    Product #: RX02 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 8.94
    Z (in): 7.44
    Quick Ship: Yes
    3D   View/Download
    CAD File





    Use two connectors (RR01) to connect 90° elbow to Transair® pipe.

    ➤ Back to Top

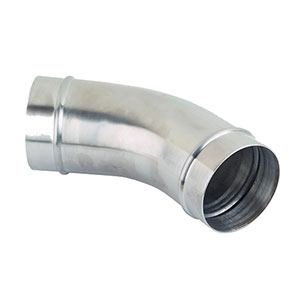

    45° Pipe to Pipe Elbows

    Product #: RX12 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 9.27
    Z (in): 4.80
    Quick Ship: No
    3D   View/Download
    CAD File





    Use two connectors (RR01) to connect 45° elbow to Transair® pipe


    ➤ Back to Top

    3" Tees

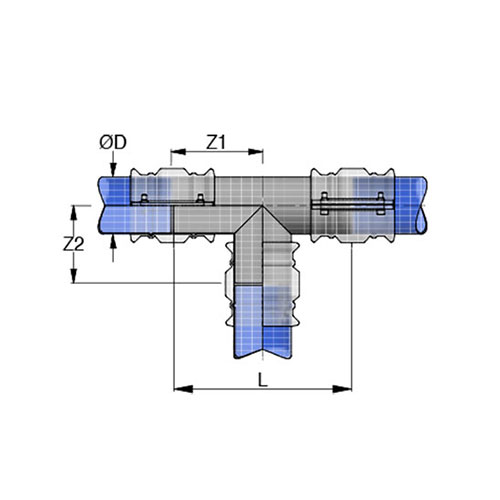

    Equal Tees
    Product #: RX04 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 11.50
    Z1 (in): 5.75
    Z2 (in): 5.75
    Quick Ship: No
    3D   View/Download
    CAD File





    Use three connectors (RR01) to connect equal tees to Transair® pipe.

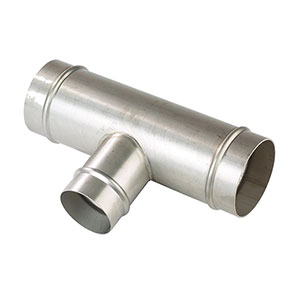

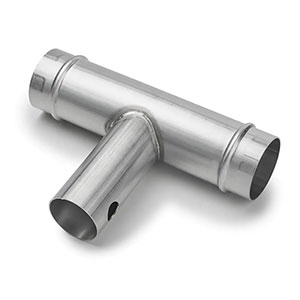

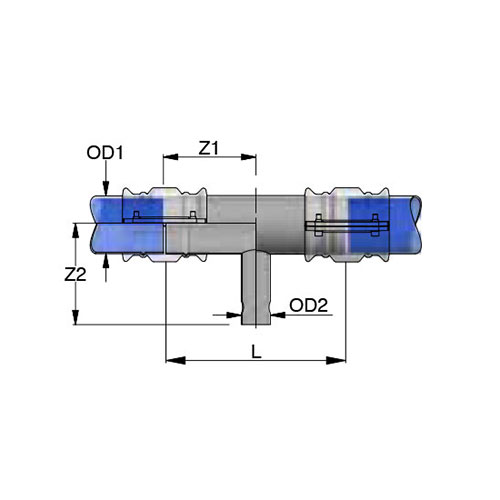

    Reducing Tees
    Product #: RX24 L1 40
    øD (in): 3
    øD (mm): 76
    øD2 (in): 1½
    øD2 (mm): 40
    L (in): 11.50
    Z1 (in): 5.75
    Z2 (in): 4.13
    Quick Ship: Limited
    3D   View/Download
    CAD File




    Product #: RX24 L1 50
    øD (in): 3
    øD (mm): 76
    øD2 (in): 2
    øD2 (mm): 50
    L (in): 11.50
    Z1 (in): 5.75
    Z2 (in): 6.30
    Quick Ship: Limited
    3D   View/Download
    CAD File




    Product #: RX24 L1 63
    øD (in): 3
    øD (mm): 76
    øD2 (in): 2½
    øD2 (mm): 63
    L (in): 11.50
    Z1 (in): 5.75
    Z2 (in): 6.46
    Quick Ship: Limited
    3D   View/Download
    CAD File





    Use two connectors (RR01) to connect reducing tees (RX24) to Transair® Ø 3" pipes and use
    one connector (6606) to connect Transair® Ø 1 ½" and Ø 2 ½" pipes.

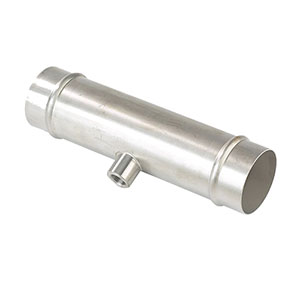

    Female Threaded NPT Tee
    Product #: RX20 L1N04
    øD (in): 3
    øD (mm): 76
    L (in): 11.50
    Z1 (in): 5.75
    Z2 (in): 2.48
    THD Size (in): ½
    Quick Ship: No
    3D   View/Download
    CAD File





    Use two connectors (RR01) to connect threaded tees to Transair® pipe

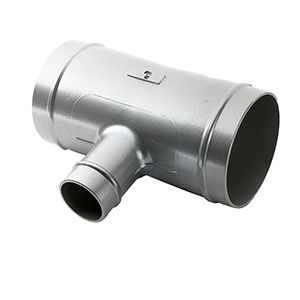

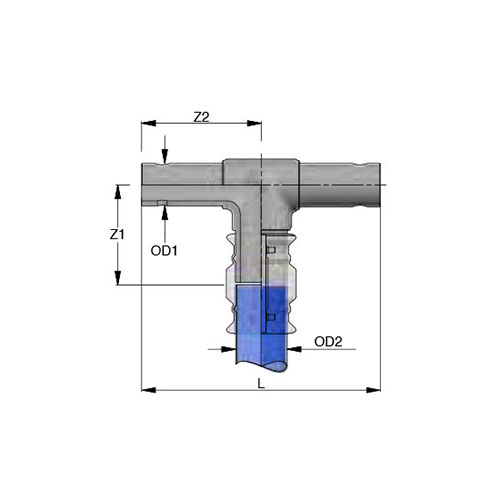

    Expanding Tee
    Product #: RA04 L1 L3
    øD (in): 3
    øD (mm): 76
    øD2 (in): 4
    øD2 (mm): 101
    L (in): 12.68
    Z1 (in): 5.87
    Z2 (in): 6.34
    Quick Ship: No
    3D   View/Download
    CAD File





    Use three connectors (RR01) to connect expanding tees to Transair® Ø 3" pipes.

    Flanged Tees are found below

    ➤ Back to Top

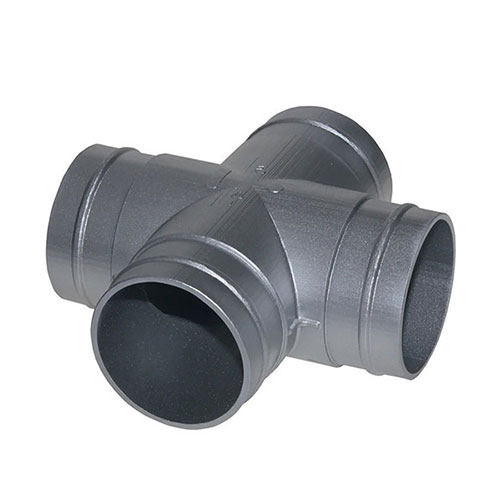

    Equal Crosses

    Product #: RA07 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 11.73
    Z (in): 5.87
    Quick Ship: No
    3D   View/Download
    CAD File





    Use four connectors (RR01) to connect equal crosses (RA07 L3 00) to Transair® Ø 3" pipes.

    ➤ Back to Top

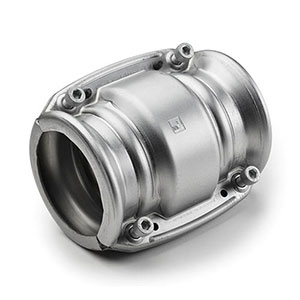

    Pipe-to-Pipe Connectors (Union Clamp - Includes Cartridge)

    Product #: RR01 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 5.75
    Quick Ship: Limited
    3D   View/Download
    CAD File




    Union Clamp Replacement Cartridge
    Product #: RP00 L1 00
    øD (in): 3
    øD (mm): 76
    Quick Ship: No





    ➤ Back to Top

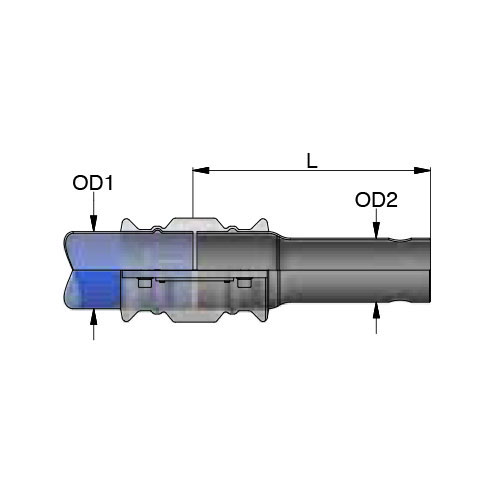

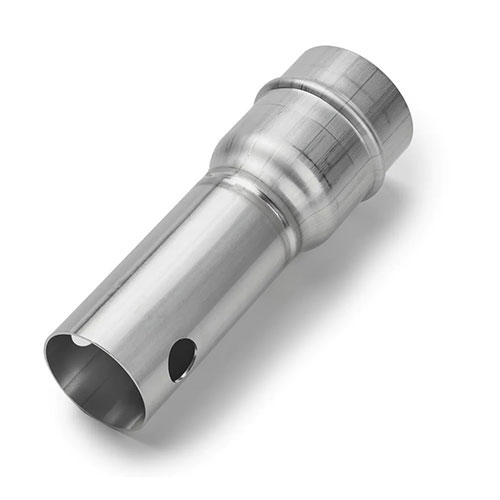

    Plug-In Reducer

    Product #: RX64 L1 50
    øD (in): 3
    øD (mm): 76
    øD2 (in): 2
    øD2 (mm): 50
    L (in): 8.67
    Quick Ship: Limited
    3D   View/Download
    CAD File




    Product #: RX64 L1 63
    øD (in): 3
    øD (mm): 76
    øD2 (in): 2 ½
    øD2 (mm): 63
    L (in): 9.06
    Quick Ship: Limited
    3D   View/Download
    CAD File





    Use one connector (RR01) to connect plug-in reducers (RX64 and RX66) to Transair® Ø 3" pipes & one connector (6606) to connect to Transair® Ø 2 ½" pipe.

    ➤ Back to Top

    End Caps

    Product #: RX25 L1 00
    øD (in): 3
    øD (mm): 76
    L (in): 4.17
    Quick Ship: Limited
    3D   View/Download
    CAD File




    End Cap with Plug
    Product #: RA25 L1 04
    øD (in): 3
    øD (mm): 76
    L (in): 4.84
    Z (in): 1.89
    Quick Ship: No
    3D   View/Download
    CAD File




    Supplied with a ½" BSP threaded plug

    Use one connector (RR01) to connect end caps to Transair pipe.

    ➤ Back to Top

    3" Flanged Connectors

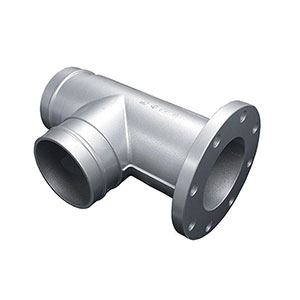

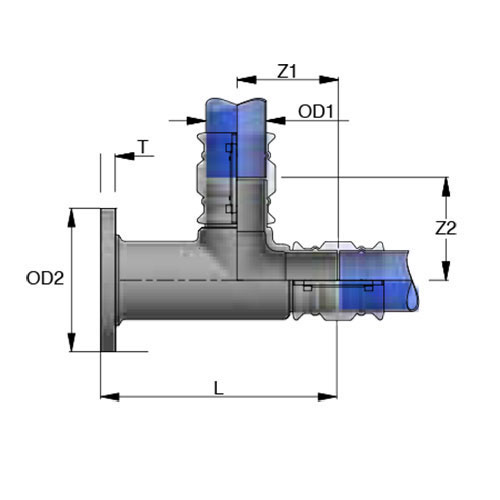

    1 Flanged Tee
    Product #: RA44 L1 00 46
    øD1 (in): 3
    øD1 (mm): 76
    Flange Size (in): 3
    øD2 (in): 7.48
    T (in): 0.97
    L (in): 14.02
    Z1 (in): 5.87
    Standard: ANSI
    3D   View/Download
    CAD File

    Avaliable but missing






    Use two connectors (RR01) to connect 1 flanged tees to Transair® pipe.
    3 Flanged Cross
    Product #: RA07 L1 03 46
    øD1 (in): 3
    øD1 (mm): 76
    Flange Size (in): 3
    øD2 (in): 7.48
    T (in): 0.97
    L (in): 16.30
    Z1 (in): 8.15
    Z2 (in): 5.87
    Standard: ANSI
    3D   View/Download
    CAD File

    Avaliable but missing






    Use one connector (RR01) to connect 3 flanged crosses to Transair® pipe.

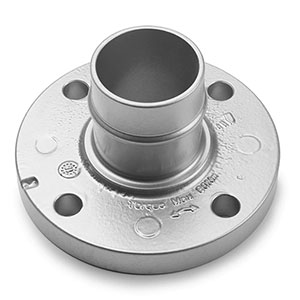

    Flange Adapter – DIN
    Product #: RA30 L1 00
    øD1 (in): 3
    øD1 (mm): 76
    DN: 80
    NO. of Bolt Holes: 8
    L (in): 4.20
    T (in): 0.97
    D (in): 6.30
    Quick Ship: No
    3D   View/Download
    CAD File





    Use one connector (RR01) to connect flanges to Transair Ø 3" pipes.
    Flange Adapter – ANSI
    Product #: RA31 L1 00
    øD1 (in): 3
    øD1 (mm): 76
    DN: 80
    NO. of Bolt Holes: 4
    L (in): 4.20
    T (in): 0.97
    D (in): 6.00
    Quick Ship: No
    3D   View/Download
    CAD File





    Use one connector (RR01) to connect flanges to Transair Ø 3" pipes.

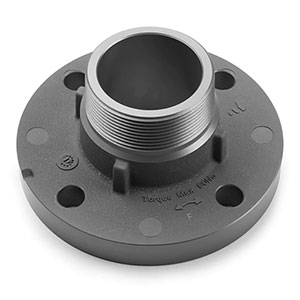

    Aluminum Male Threaded NPT Flange Adapter
    Product #: RA33 L1N24
    øD (in): 3
    øD (mm): 76
    DN: 80
    NO. of Bolt Holes: 4
    L (in): 3.60
    T (in): 0.97
    D (in): 6.00
    THD Size (NPT): 3
    Quick Ship: No
    3D   View/Download
    CAD File




    ANSI standard flanges

    ➤ Back to Top

    Male Threaded NPT Adapter

    Product #: RR21 L1N20
    øD (in): 3
    øD (mm): 76
    Threaded (NPT): 5.08
    HEX (mm): 2 ½
    L (in): 80
    Z (in): 3.75
    3D   View/Download
    CAD File




    Product #: RR21 L1N24
    øD (in): 3
    øD (mm): 76
    Threaded (NPT): 5.31
    HEX (mm): 3
    L (in): 95
    Z (in): 3.75
    3D   View/Download
    CAD File





    ➤ Back to Top

    Y Connectors

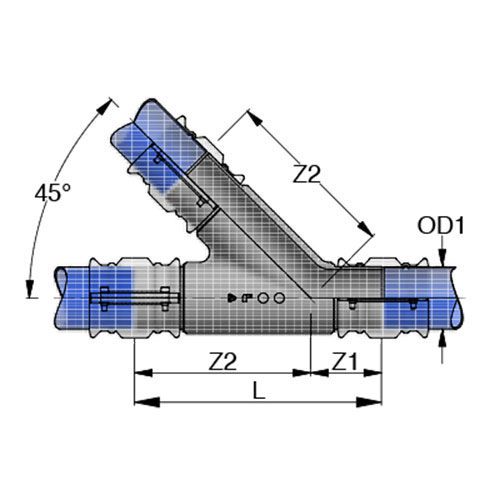

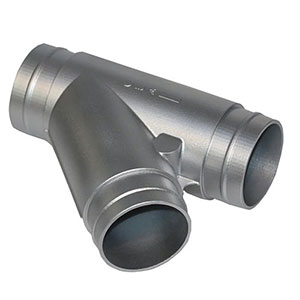

    Equal Y
    Product #: RA26 L1 00
    øD1 (in): 3
    øD1 (mm): 76
    L (in): 13.50
    Z1 (in): 4.17
    Z2 (in): 9.33
    Quick Ship: No
    3D   View/Download
    CAD File





    Use three connectors (RR01) to connect equal Y to Transair® Ø 3" pipes.

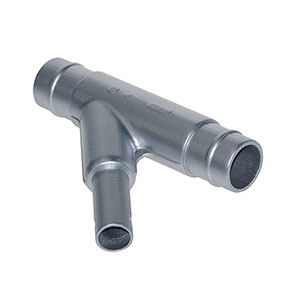

    Reducing Y
    Product #: RA26 L1 40
    ØD1 (in): 3
    ØD1 (mm): 76
    ØD2 (in): 1 ½
    ØD2 (mm): 40
    L (in): 14.41
    Z1 (in): 4.17
    Z2 (in): 10.24
    Z3 (in): 9.06
    3D   View/Download
    CAD File





    Use two connectors (RR01) and one connector (6606) to connect reducing Y (RA26 L3 63) to Transair® Ø 1 ½" pipes.
    Product #: RA26 L1 50
    ØD1 (in): 3
    ØD1 (mm): 76
    ØD2 (in): 2
    ØD2 (mm): 50
    L (in): 14.41
    Z1 (in): 4.17
    Z2 (in): 10.24
    Z3 (in): 11.02
    3D   View/Download
    CAD File





    Use three connectors (RR01) to connect reducing Y (RA26 L3 L1) to Transair® Ø 2" pipes.
    Product #: RA26 L1 63
    ØD1 (in): 3
    ØD1 (mm): 76
    ØD2 (in): 2½
    ØD2 (mm): 63
    L (in): 14.41
    Z1 (in): 4.17
    Z2 (in): 10.24
    Z3 (in): 11.02
    3D   View/Download
    CAD File





    Use three connectors (RR01) to connect reducing Y (RA26 L3 L1) to Transair® Ø 2½" pipes.

    ➤ Back to Top

    Female Threaded NPT Saddle Reducing Bracket

    Product #: RR63 L1N08
    ØD (in): 3
    ØD (mm): 76
    ØD2 (in): 1
    ØD2 (mm): 25
    L (in): 3.15
    X (in): 5.71
    HEX (mm): 36
    Quick Ship: Limited
    3D   View/Download
    CAD File





    Nitrile Seals. Supplied with Ø 1" adaptor (6621 25 35). To drill Transair® pipe, use drilling tool EW09.

    ➤ Back to Top

    3" Valves

    Ball Valve
    Product #: VR01 L1 00 46
    ØD(in): 3
    ØD(mm): 76
    DN: 80
    L (in): 11.02
    Z (in): 7.09
    D (in): 6.00
    Number Of Bolt Holes: 4
    Quick Ship: No





    Flange Part NO. (RA31 L1 00) | Gasket Part NO. (EW05 L1 00) | Bolt Kit Part NO. (EW06 00 14US) | MAX. Tightening Torque(FT-LBS): 59

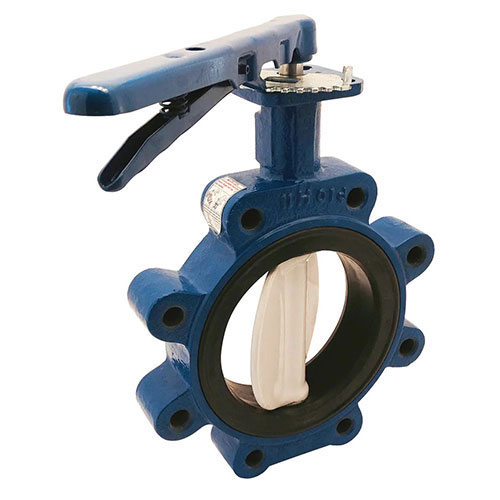

    Butterfly Valve
    Product #: VR02 L1 00US
    ØD(in): 3
    ØD(mm): 76
    Flange Std: ANSI
    DN: 80
    D (in): 6.00
    THD Size (UNC-2B): 5⁄8 - 11
    Number Of Bolt Holes: 4
    L (in): 4.72
    H (in): 6.30
    T (in): 1.75
    Quick Ship: No




    Not supplied with handle or bolt kit

    Flange Part NO. (RA31 L1 00) | Bolt Kit Part NO. (EW10 00 US) | MAX. Tightening Torque(FT-LBS): 59 | Max. Pressure: 175 PSI (12 bar)

    ➤ Back to Top

    3" Rubber Insulated Pipe Hangers

    Product #: ER01 L1 00
    ØD(in): 3
    ØD(mm): 76
    THD Size (in): 3⁄8-16 UNC
    Quick Ship: No






    ➤ Back to Top
