Transair® Stainless Steel Pipe and Fittings
Diameter: 1½"(42mm)
TransairPipeSales.com is your complete source for Transair 1½" Pipe and Fittings. Transair® 1½" Pipe and fittings are quick and easy to install.
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials
Note: California residents click here for Proposition 65 information
WARNING:
These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm.
For more information go to www.p65Warnings.ca.gov
• Stainless Steel Pipe
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Threaded NPT Plug-In Reducer
• Male NPT Threaded Adapter
• 90° Pipe to Pipe Elbows
• 45° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Threaded NPT Plug-In Reducer
• Male NPT Threaded Adapter

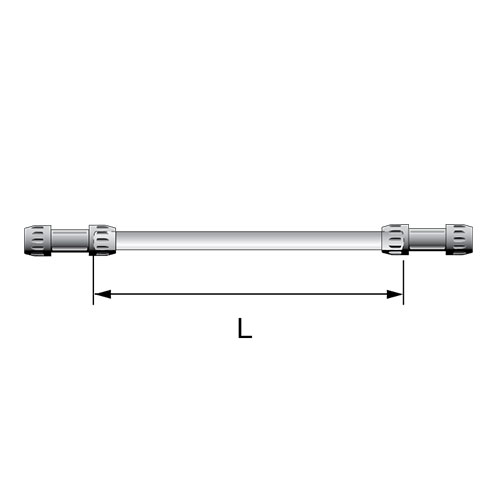

Stainless Steel Pipe
1½" (42mm) Pipe - 20ft
Click For Larger View
Click For Larger View
Product #: TX16 M4 00
øD (in): 1½
øD (mm): 42
L (ft): 20'
Weight (lb): 21.6
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
øD (in): 1½
øD (mm): 42
L (ft): 20'
Weight (lb): 21.6
Manufacturing Standards: EN 10217-7
Grades: 1.4301 / AISI 304
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: EN 1127 D4 / T3
 |
|||||
 |
|||||
➤ Back to Top
1½" Connectors
90° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RP02 M4 01
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 5.12
Z (in): 2.17
Weight (lb): 1.33
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 5.12
Z (in): 2.17
Weight (lb): 1.33
|
|||||
|
|||||
Product #: RP02 M4 02
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 5.12
Z (in): 2.52
Weight (lb): 1.33
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 5.12
Z (in): 2.52
Weight (lb): 1.33
|
|||||
|
|||||
➤ Back to Top
45° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RX12 M4 00
øD (in): 1½
øD (mm): 42
L1 (in): 11.34
L2 (in): 5.87
Weight (lb): 1.07
øD (in): 1½
øD (mm): 42
L1 (in): 11.34
L2 (in): 5.87
Weight (lb): 1.07
|
|||||
|
|||||
Use 2 connectors RP06 to connect elbow RX12 to Transair® stainless steel pipe.
➤ Back to Top

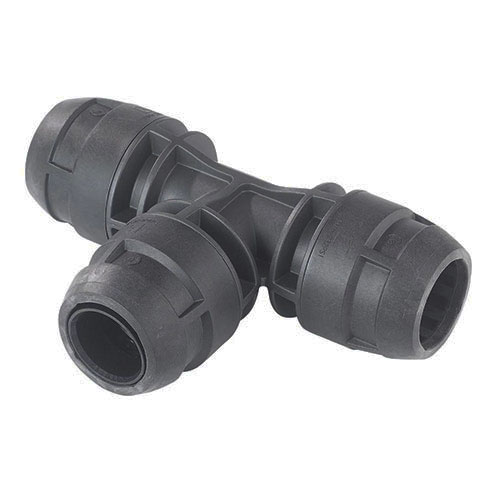

Equal Tees
Click For Larger View
Click For Larger View
Product #: RP04 M4 01
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 10.24
Z1 (in): 2.17
Z2 (in): 2.17
Weight (lb): 1.98
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 10.24
Z1 (in): 2.17
Z2 (in): 2.17
Weight (lb): 1.98
|
|||||
|
|||||
Product #: RP04 M4 02
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 10.24
Z1 (in): 2.17
Z2 (in): 2.17
Weight (lb): 1.98
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 10.24
Z1 (in): 2.17
Z2 (in): 2.17
Weight (lb): 1.98
|
|||||
|
|||||
➤ Back to Top
Pipe-to-Pipe Connectors (Unions)
Click For Larger View
Click For Larger View
Product #: RP06 M4 01
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 6.10
Z (in): 0.10
Weight (lb): 1.09
Seal: EPDM
øD (in): 1½
øD (mm): 42
L (in): 6.10
Z (in): 0.10
Weight (lb): 1.09
|
|||||
|
|||||
Product #: RP06 M4 02
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 6.10
Z (in): 0.10
Weight (lb): 1.09
Seal: FKM
øD (in): 1½
øD (mm): 42
L (in): 6.10
Z (in): 0.10
Weight (lb): 1.09
|
|||||
|
|||||
➤ Back to Top
Female Threaded NPT Plug-In Reducer
Click For Larger View
Click For Larger View
Product #: RR65 M6N06
øD (in): 1½
øD (mm): 42
Thread Size (in): ¾
L (in): 3.46
Weight (lb): 1.32
øD (in): 1½
øD (mm): 42
Thread Size (in): ¾
L (in): 3.46
Weight (lb): 1.32
|
|||||
|
|||||
Product #: RR65 M6N08
øD (in): 1½
øD (mm): 42
Thread Size (in): 1
L (in): 6.30
Weight (lb): 1.76
øD (in): 1½
øD (mm): 42
Thread Size (in): 1
L (in): 6.30
Weight (lb): 1.76
|
|||||
|
|||||
➤ Back to Top
End Caps
Click For Larger View
Click For Larger View
Product #: RR25 M4 00
øD (in): 1½
øD (mm): 42
L (in): 3.35
Weight (lb): 1.03
øD (in): 1½
øD (mm): 42
L (in): 3.35
Weight (lb): 1.03
|
|||||
|
|||||
➤ Back to Top
Male Threaded NPT Adapter
Click For Larger View
Click For Larger View
Product #: RR05 M4N06
øD (in): 1½
øD (mm): 42
Thread Size (in): ¾
L (in): 4.61
Z (in): 0.81
Weight (lb): 1.23
øD (in): 1½
øD (mm): 42
Thread Size (in): ¾
L (in): 4.61
Z (in): 0.81
Weight (lb): 1.23
|
|||||
|
|||||
Product #: RR05 M4N10
øD (in): 1½
øD (mm): 42
Thread Size (in): 1¼
L (in): 7.20
Z (in): 0.87
Weight (lb): 1.98
øD (in): 1½
øD (mm): 42
Thread Size (in): 1¼
L (in): 7.20
Z (in): 0.87
Weight (lb): 1.98
|
|||||
|
|||||
Product #: RR05 M4N12
øD (in): 1½
øD (mm): 42
Thread Size (in): 1½
L (in): 7.20
Z (in): 0.87
Weight (lb): 1.30
øD (in): 1½
øD (mm): 42
Thread Size (in): 1½
L (in): 7.20
Z (in): 0.87
Weight (lb): 1.30
|
|||||
|
|||||
➤ Back to Top
Flange Adapter
Click For Larger View
Click For Larger View
Product #: RX30 M4 00
øD (in): 1½
øD (mm): 42
Standard: DIN
D1 (in): 5.51
D2 (in): 3.94
D3 (in): 0.71
L (in): 6.42
Weight (lb): 2.76
øD (in): 1½
øD (mm): 42
Standard: DIN
D1 (in): 5.51
D2 (in): 3.94
D3 (in): 0.71
L (in): 6.42
Weight (lb): 2.76
|
|||||
|
|||||
EPDM Gasket
Click For Larger View
Click For Larger View
Product #: EW05 M4 01
øD (in): 1½
øD (mm): 42
For Use with: RX30 M4 00
øD (in): 1½
øD (mm): 42
For Use with: RX30 M4 00
|
|||||
|
|||||
BOLT KIT PART NO.: EW06 00 03 | MAX. TIGHTENING TORQUE (FT-LBS): 147.51
➤ Back to Top
Butterfly Valves
Click For Larger View
Click For Larger View
Product #: VR02 M4 01
Seal: EPDM
Standard Flange: DIN
øD (in): 1½
øD (mm): 42
Number of Lugs: 4
Weight (lb): 3.77
Bolt part #: EW06 00 03
Flange part #: RX30 M4 00
Seal: EPDM
Standard Flange: DIN
øD (in): 1½
øD (mm): 42
Number of Lugs: 4
Weight (lb): 3.77
Bolt part #: EW06 00 03
Flange part #: RX30 M4 00
|
|||||
|
|||||
Product #: VR02 M4 02
Seal: FKM
Standard Flange: DIN
øD (in): 1½
øD (mm): 42
Number of Lugs: 4
Weight (lb): 3.77
Bolt part #: EW06 00 03
Flange part #: RX30 M4 00
Seal: FKM
Standard Flange: DIN
øD (in): 1½
øD (mm): 42
Number of Lugs: 4
Weight (lb): 3.77
Bolt part #: EW06 00 03
Flange part #: RX30 M4 00
|
|||||
|
|||||
EW06 bolt kits are not supplied for valve/flanges assembly. The butterfly valves do not require additional ring when connected to circular flanges
MAX. TIGHTENING TORQUE (FT-LBS): 36.88
➤ Back to Top
Fixture Accessories
Quick Assembly Direct Feed Bracket
Click For Larger View
Click For Larger View
Product #: RR89 M4N06 01
Seal: EPDM
ØD (in): 1½
ØD (mm): 42
L (in): 3.46
Weight (lbs): .99
Seal: EPDM
ØD (in): 1½
ØD (mm): 42
L (in): 3.46
Weight (lbs): .99
|
|||||
|
|||||
Product #: RR89 M4N06 02
Seal: FKM
ØD (in): 1½
ØD (mm): 42
L (in): 3.46
Weight (lbs): .99
Seal: FKM
ØD (in): 1½
ØD (mm): 42
L (in): 3.46
Weight (lbs): .99
|
|||||
|
|||||
➤ Back to Top
Fixing Clip for Stainless Steel Pipe
Click For Larger View
Click For Larger View
Product #: ER01 M4 01
ØD (in): 1½
ØD (mm): 42
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
ØD (in): 1½
ØD (mm): 42
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN
|
|||||
|
|||||
➤ Back to Top
