Transair® Stainless Steel Pipe and Fittings
Diameter: 1"(28mm)

TransairPipeSales.com is your complete source for Transair 1" Pipe and Fittings. Transair® 1" Pipe and fittings are quick and easy to install.
➤ Click Here for Volume & Mass Information
➤ Click Here for Sizing Chart
➤ Click Here for Seals Chemical Compatibility
➤ Click Here for Transair® Component Materials

Note: California residents click here for Proposition 65 information

WARNING: These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information go to www.p65Warnings.ca.gov
• Aluminum Pipe
• 90° Pipe to Pipe Elbows
• Pipe-to-Pipe Connectors (Unions)
• Male NPT Stud Connector
• Reducing Tees
• Equal Tees
• End Caps
• Fixing Clips
28mm Stainless Steel Transair

Stainless Steel Pipe

1" (28mm) Pipe - 20ft

Product #: TF16 N9 00
øD (in): 1
øD (mm): 28
L (ft): 20'
Weight (lb): 10.8
Manufacturing Standards: EN 10217-7
Grades: EN 10088-2, 1.4404 / AISI 316 L
Welding Standards: DIN 17 457, EN 10217-7
Tolerances: DVGW - W541





➤ Back to Top

1" Connectors

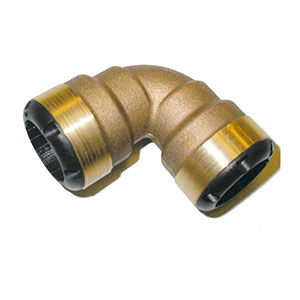

90° Pipe to Pipe Elbows

Product #: RR02 N9 01
Seal: EPDM
øD (in): 1
øD (mm): 28
L (in): 2.2
Z (in): 0.52
Weight (lb): 0.59




Product #: RR02 N9 02
Seal: FKM
øD (in): 1
øD (mm): 28
L (in): 2.2
Z (in): 0.57
Weight (lb): 0.59





➤ Back to Top

Equal Tees

Product #: RR04 N9 01
Seal: EPDM
øD (in): 1
øD (mm): 28
L1 (in): 1.66
L2 (in): 2.20
Z1 (in): 0.46
Z2 (in): 0.43
Weight (lb): 0.86




Product #: RR04 N9 02
Seal: FKM
øD (in): 1
øD (mm): 28
L1 (in): 2.20
L2 (in): 2.20
Z1 (in): 0.57
Z2 (in): 0.57
Weight (lb): 0.86





➤ Back to Top

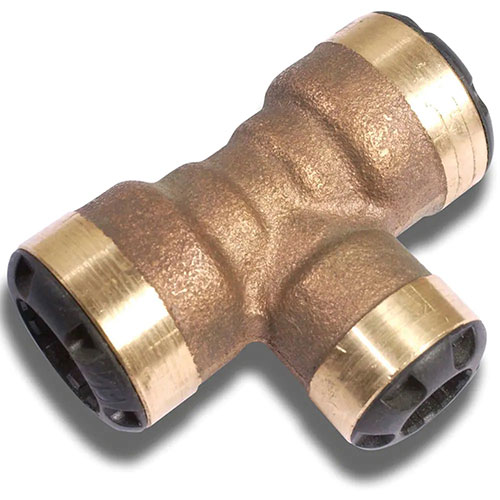

Reducing Tees

Product #: RR04 N9 N7 01
Seal: EPDM
øD1 (in): 1
øD1 (mm): 28
øD2 (in): ½
øD2 (mm): 22
L1 (in): 2.09
L2 (in): 1.83
Z1 (in): 0.45
Z2 (in): 0.64
Weight (lb): 0.33




Product #: RR04 N9 N7 02
Seal: FKM
øD1 (in): 1
øD1 (mm): 28
øD2 (in): ½
øD2 (mm): 22
L1 (in): 2.09
L2 (in): 1.83
Z1 (in): 0.45
Z2 (in): 0.64
Weight (lb): 0.33





➤ Back to Top

Pipe-to-Pipe Connectors (Unions)

Product #: RR06 N9 01
Seal: EPDM
øD (in): 1
øD (mm): 28
L (in): 3.37
Z (in): 0.05
Weight (lb): 0.55




Product #: RR06 N9 02
Seal: FKM
øD (in): 1
øD (mm): 28
L (in): 3.37
Z (in): 0.05
Weight (lb): 0.55





➤ Back to Top

End Caps

Product #: RR25 N9 01
Seal: EPDM
øD (in): 1
øD (mm): 28
L (in): 2.15
Weight (lb): 0.33




Product #: RR25 N9 02
Seal: FKM
øD (in): 1
øD (mm): 28
L (in): 2.15
Weight (lb): 0.33





➤ Back to Top

Male NPT Stud Connector

Product #: RR05 N9N08 01
Seal: EPDM
øD (in): 1
øD (mm): 28
Thread Size (in): 1
L (in): 2.89
Z (in): 1.67
Weight (lb): 0.57




Product #: RR05 N9N08 02
Seal: FKM
øD (in): 1
øD (mm): 28
Thread Size (in): 1
L (in): 2.89
Z (in): 1.67
Weight (lb): 0.57





➤ Back to Top

Fixture Accessories

Fixing Clip for Stainless Steel Pipe

Product #: ER01 N9 01
ØD (in): 1
ØD (mm): 28
Thread Size (in): 3⁄8"-16
Max admitted static load: 210 daN





➤ Back to Top
