Transair® Aluminum Pipe and Fittings
Diameter: 8"(220mm)
TransairPipeSales.com is your complete source for Transair 8" Pipe and Fittings.
Transair® 8" Pipe and fittings are quick and easy to install.
➤ Click Here For Transair® 8"(220mm) Technical Specifications
➤ Click Here For Transair® 8"(220mm) Technical Specifications
Note: California residents click here for Proposition 65 information
WARNING:
These products described herein can expose you to chemicals known to the State of California to cause cancer or reproductive harm.
For more information go to www.p65Warnings.ca.gov
Quick Menu
Aluminum Pipe
90° Pipe to Pipe Elbows
45° Pipe to Pipe Elbows
Union Connectors
Flange Reducers
Female Threaded NPT Saddle Reducing Bracket
8" Aluminum Pipe
Blue Aluminum Pipe - 20ft
Click For Larger View
Gray Aluminum Pipe - 20ft
Click For Larger View
Green Aluminum Pipe - 20ft
Click For Larger View
Product #: TA16 L12 02*
øD (in): 8
øD (mm): 220
L (ft): 20'
Weight (lb): 93.32
øD (in): 8
øD (mm): 220
L (ft): 20'
Weight (lb): 93.32
 |
|||||
 |
|||||
➤ Back to Top
8" Connectors
90° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RA02 V1200
øD (in): 8
øD (mm): 220
C to E (in): 7.75
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
øD (in): 8
øD (mm): 220
C to E (in): 7.75
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
|
|||||
|
|||||
➤ Back to Top

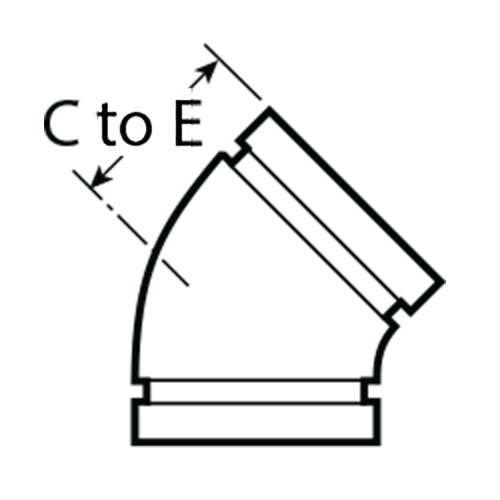

45° Pipe to Pipe Elbows
Click For Larger View
Click For Larger View
Product #: RA12 V1200
øD (in): 8
øD (mm): 220
C to E (in): 4.25
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
øD (in): 8
øD (mm): 220
C to E (in): 4.25
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
|
|||||
|
|||||
➤ Back to Top

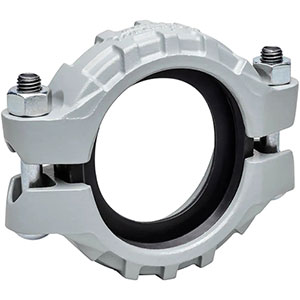

Union Connector
Click For Larger View
Click For Larger View
Product #: RR01 V1200
øD (in): 8
øD (mm): 220
X (in): 10.88
Y (in): 14.86
Z (in): 2.50
Min/Max Operating Temp.: -4 °F / +140 °F
Max Operating Pressure: 188 psi
Seal Material: NITRILE
Application: Compressed Air, Industrial/Inert Gas
øD (in): 8
øD (mm): 220
X (in): 10.88
Y (in): 14.86
Z (in): 2.50
Min/Max Operating Temp.: -4 °F / +140 °F
Max Operating Pressure: 188 psi
Seal Material: NITRILE
Application: Compressed Air, Industrial/Inert Gas
|
|||||
|
|||||
Product #: RR01 V1203
øD (in): 8
øD (mm): 220
X (in): 10.88
Y (in): 14.86
Z (in): 2.50
Min/Max Operating Temp.: -4 °F / +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Seal Material: NITRILE
Application: Vacuum
øD (in): 8
øD (mm): 220
X (in): 10.88
Y (in): 14.86
Z (in): 2.50
Min/Max Operating Temp.: -4 °F / +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Seal Material: NITRILE
Application: Vacuum
|
|||||
|
|||||

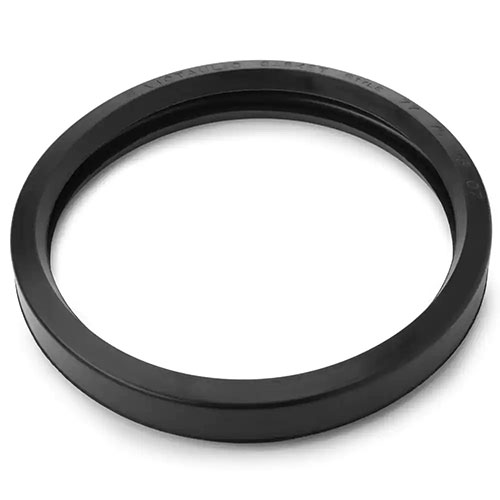

Replacement Seal
Click For Larger View
Product #: RP00 V1202
øD (in): 8
øD (mm): 220
Seal Material: FKM
Application: Compressed Air, Industrial/Inert Gas
øD (in): 8
øD (mm): 220
Seal Material: FKM
Application: Compressed Air, Industrial/Inert Gas
|
|||||
|
|||||
Product #: RP00 V1200
øD (in): 8
øD (mm): 220
Seal Material: NITRILE
Application: Compressed Air, Industrial/Inert Gas
øD (in): 8
øD (mm): 220
Seal Material: NITRILE
Application: Compressed Air, Industrial/Inert Gas
|
|||||
|
|||||
Product #: RP00 V1203
øD (in): 8
øD (mm): 220
Seal Material: NITRILE
Application: Vacuum
øD (in): 8
øD (mm): 220
Seal Material: NITRILE
Application: Vacuum
|
|||||
|
|||||
Union Replacement Bolt Kit
Click For Larger View➤ Back to Top
Equal Tee
Click For Larger View
Click For Larger View
Product #: RA04 V1200
øD (in): 8
øD (mm): 220
C to E (in): 7.75
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
øD (in): 8
øD (mm): 220
C to E (in): 7.75
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
|
|||||
|
|||||
➤ Back to Top

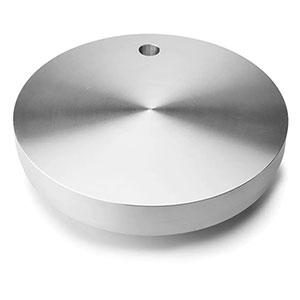

End Cap
Click For Larger View
Click For Larger View
Product #: RA25 V1200
øD (in): 8
øD (mm): 220
T (in): 1.25
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
øD (in): 8
øD (mm): 220
T (in): 1.25
Max Operating Pressure: 188 psi
Min Operating Temp.: -4 °F
Max Operating Temp.: +140 °F
Vac. Pressure Rating: 29.6 Inch-Hg
Materials: Galvanized Steel
|
|||||
|
|||||
➤ Back to Top
Flange – ANSI ASME B16.5 Class 150
Click For Larger View
Click For Larger View
Product #: RA31 V1200
øD (in): 8
øD (mm): 220
Standard: ANSI
A MAX (in): 8.63
B MIN (in): 9.94
W (in): 14.75
X (in): 13.5
Y (in): 11.75
Z (in): 1.13
øD (in): 8
øD (mm): 220
Standard: ANSI
A MAX (in): 8.63
B MIN (in): 9.94
W (in): 14.75
X (in): 13.5
Y (in): 11.75
Z (in): 1.13
|
|||||
|
|||||
➤ Back to Top
Flange Reducers
Click For Larger View
Click For Larger View
Product #: RA31 L8 K2
øD (in): 8
øD (mm): 220
øD2 (in): 6
øD2 (mm): 168
L (in): 7.85
Standard: ANSI
øD (in): 8
øD (mm): 220
øD2 (in): 6
øD2 (mm): 168
L (in): 7.85
Standard: ANSI
 |
View/Download CAD File |
|
|||||
|
|||||
Use Flange (RA31 V1200) to connect flange reducer to Transair Ø8” pipe.
Use connector (RR01 L8 00) to connect flange reducer to Transair Ø6” pipe.
➤ Back to Top
Female Threaded NPT Saddle Reducing Bracket
Click For Larger View
Click For Larger View
Product #: RR63 V12N16
øD (in): 8
øD (mm): 220
THD Size (in): 2
T (in): 5.44
V (in): 6.19
W (in): 4.81
Y (in): 12.42
Z (in): 4.5
øD (in): 8
øD (mm): 220
THD Size (in): 2
T (in): 5.44
V (in): 6.19
W (in): 4.81
Y (in): 12.42
Z (in): 4.5
|
|||||
|
|||||
Drill a 2-1/8" diameter hole for the drop outlet
Product #: RR63 V12N20
øD (in): 8
øD (mm): 220
THD Size (in): 2-1/2
T (in): 5.07
V (in): 6.19
W (in): 4.81
Y (in): 12.42
Z (in): 4.5
øD (in): 8
øD (mm): 220
THD Size (in): 2-1/2
T (in): 5.07
V (in): 6.19
W (in): 4.81
Y (in): 12.42
Z (in): 4.5
|
|||||
|
|||||
Drill a 2-5/8" diameter hole for the drop outlet
➤ Back to Top

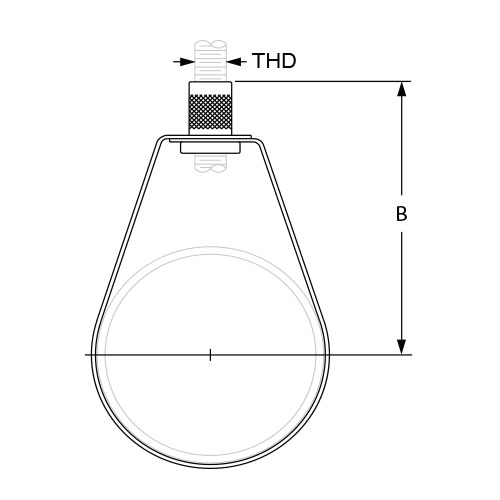

Pipe Hanger
Click For Larger View
Click For Larger View
Product #: EX01 V1200
øD (in): 8
øD (mm): 220
THD Size (in): 3/8
B (in): 8-9/16
Materials: Carbon Steel
øD (in): 8
øD (mm): 220
THD Size (in): 3/8
B (in): 8-9/16
Materials: Carbon Steel
|
|||||
|
|||||
➤ Back to Top
Butterfly Valve
Click For Larger View
Click For Larger View
Product #: VR02 V1200US
øD (in): 8
øD (mm): 220
Standard: ANSI
A (in): 5.66
B (in): 10
C (in): 2.33
D (in): 1.47
E (in): 0.8
F (in): 5
G (in): 8
H (in): 2.17
øD (in): 8
øD (mm): 220
Standard: ANSI
A (in): 5.66
B (in): 10
C (in): 2.33
D (in): 1.47
E (in): 0.8
F (in): 5
G (in): 8
H (in): 2.17
|
|||||
|
|||||
Use two connectors (RR01 V1200) to connect butterfly valve to Transair Ø8" pipe.
➤ Back to Top
✉ Email this Page
Also Available from mdi
 |
